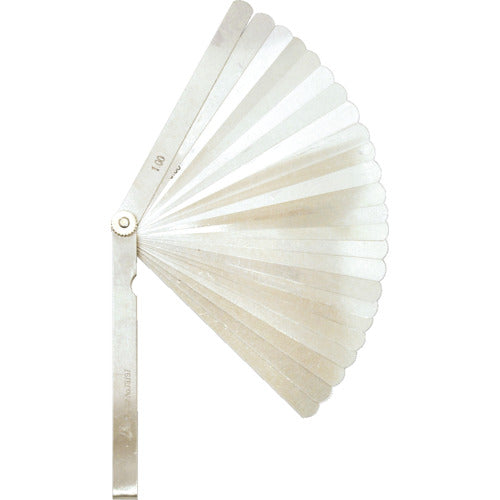

Shinwa Thickness Gauge F 150mm 25-piece set 73797 1 piece

Catalog number: 73797 Features: ● Thickness gauge with a wide variety of lengths and leaves to suit your needs. ● Leaves can be removed by removing the leaf locking screws. Applications: ● Insert into gaps to measure dimensions. Specifications: ● Manufacturer code: 73797 ● Leaf shape: A ● Length (mm): 150 ● Length (m): 0.15 ● Number of sheets (sheets): 25 ● Set details (mm): 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.11, 0.12, 0.13, 0.14, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.60, 0.75, 0.80, 0.90, 1.00 ● Thickness (mm): 0.03, 0.04, 0.05, 0.06 , 0.07, 0.08, 0.09, 0.10, 0.11, 0.12, 0.13, 0.14, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.60, 0.75, 0.80, 0.90, 1.00●Leaf width: 13mm●Minimum display (mm): 0.03●Thickness tolerance (mm): 0.03mm or more and 0.15mm or less: ±0.005mm, 0.15mm or more and 0.50mm or less: ±0.012mm, 0.50mm or more and 3.00mm or less: ±0.020 Material/Finish: ●Body: Carbon tool steel Set contents/Accessories: ●Storage case Caution: ●Never insert the leaf forcefully. ●The thickness tolerance is the tolerance for one leaf. When used in layers, the tolerance is the sum of the two.
