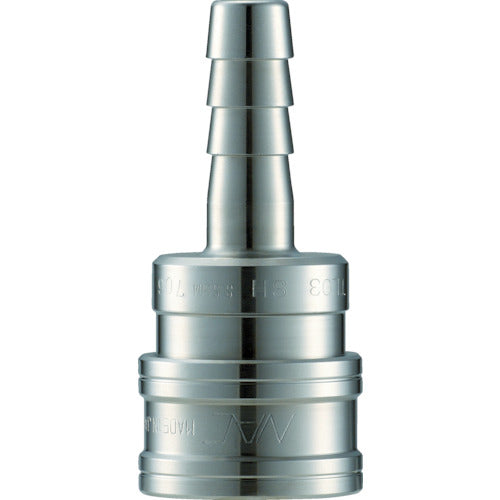

NAC Quick Coupling TL Type Stainless Steel Hose Mounting Socket 1 1/2 CTL12SH3 1 pc

Catalog number: CTL12SH3 Features: ● A through-type without a valve mechanism, it has little pressure loss and is suitable for highly viscous fluids. Specifications: ● Fluids used: air, water, hydraulic oil, etc. ● Maximum operating pressure (MPa): 3.0 ● Compatible hose size (inch): 1 1/2 ● Maximum impact pressure (MPa): 4.0 ● Operating temperature range: -20 to 180°C ● Two-way open type ● Valveless Material/Finish: ● Body: Stainless steel (SUS304) ● Sealing rubber: Fluorine rubber (FKM) Caution: ● Please note that as the size increases, the pressure resistance decreases.
