Uratani Mold Date Mark OM Type Outer Diameter 12mm UL-OM-12 1 pc

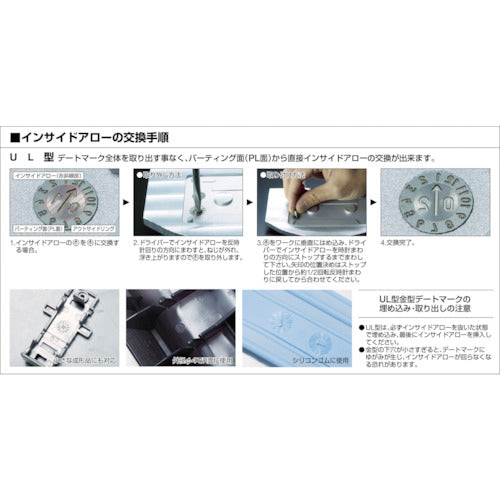

Catalog number: UL-OM-12 Features: ●The inside arrow can be replaced directly from the parting surface (PL surface) without removing the entire date mark. ●Even for the YM type (year and month display) which requires the replacement of the inside arrow (axis) of the year, the year can be replaced without disassembling the mold. ●The engraving finish and dimensional accuracy are of the same high quality as the conventional OP type. ●Even for the YM type (year and month display) which requires the replacement of the inside arrow (axis) of the year, the year can be replaced without disassembling the mold. Applications: ●For embedding in plastic molds Specifications: ●Outer diameter (mm): 12 ●Total length (mm): 14 ●Remarks: OM type (month) ●Hardness: HRC50±2 ●Inside arrow PL surface replacement type Material/Finish: ●SUS420 hardened and polished finish
