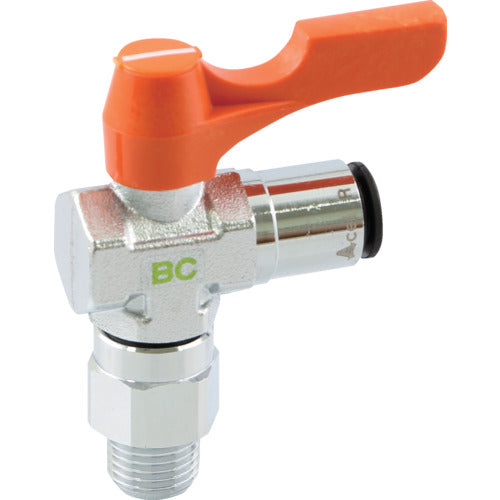

ASOH External thread x One-touch tube (RoHS Directive equivalent) PT1/4 x φ8 BC-8208R 1 piece

Catalog number: BC-8208R Features: ● A compact shape with integrated ball valve and fitting. ● The valve body and the mounting part rotate independently, making it easy to connect even in narrow spaces. ● The unique color sense and design enhance the functionality and aesthetics of the equipment. Applications: ● For air at 0.98 MPa (80°C to -10°C) (excluding frozen areas). Specifications: ● Height (mm): 29 ● Operating temperature range (°C): -10 to 80 (excluding frozen areas) ● Connection diameter D: R1/4 ● Tube outer diameter (mm): 8 ● Fluid used: water, air, oil (fluids that do not adversely affect the material) ● Fluid used: water, air, oil (fluids that do not adversely affect the material) ● Operating temperature range: -10 to 80°C (excluding frozen areas) ● Operating pressure: 0.98 MPa Material/Finish: ● Body: Brass (C3771, C3604) + chrome plating ● O-ring: Nitrile rubber (NBR)
