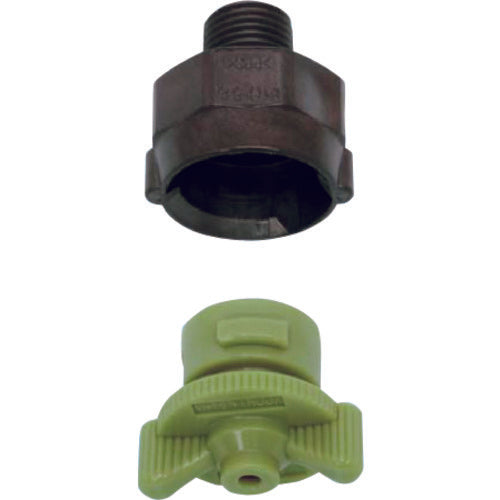

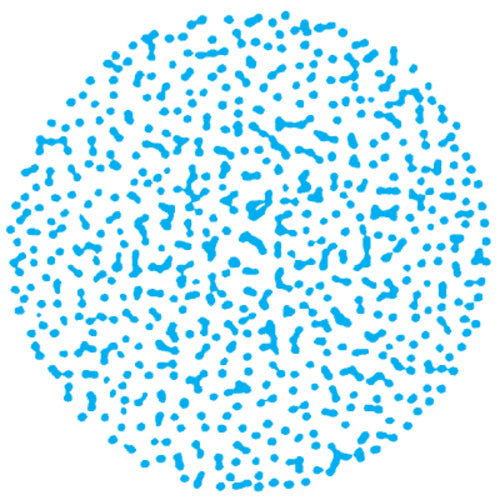

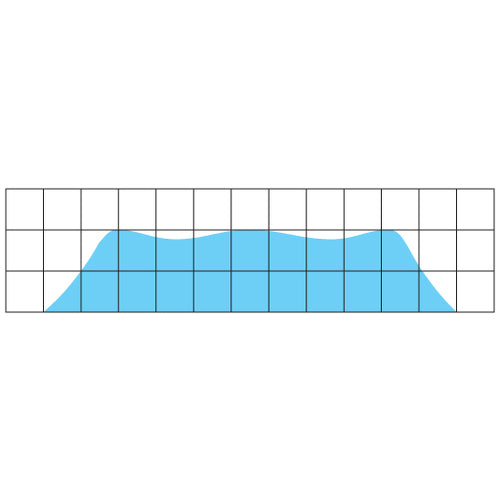

Catalog number: 1/8M INJJX 030 PP(FEPM)+PPS Features: ● A full cone nozzle with a circular spray pattern and even flow distribution. ● Easy to attach and detach, reducing maintenance time. ● The whirler inside the nozzle can also be removed. ● The knurled shape with a flange makes it easy to apply force when attaching and detaching. ● The tip and packing are designed not to fall off after removal. ● Made of polypropylene resin, it has excellent chemical and heat resistance. ● The nozzle body is color-coded according to the spray flow rate. Applications: ● Cleaning: Cleaning machine. ● Spraying: Etching chemicals, stripping agents. ● Others: Applications requiring maintenance, positioning, etc. Specifications: ● Spray angle (°): 65 (at 0.2 MPa) ● Spray volume (L/min): 3 (at 0.2 MPa) ● Thread size: R1/8 ● Manufacturer's official part number: 1/8M INJJX 030 PP(FEPM)+PPS ● Standard pressure: 0.2 MPa
