IKEUCHI Wide Flat Air Nozzle TAIFUJet Series PPS Resin Thread 3/8 Male φ1.0 3/8MTF-F121-46-010PPS 1 pc

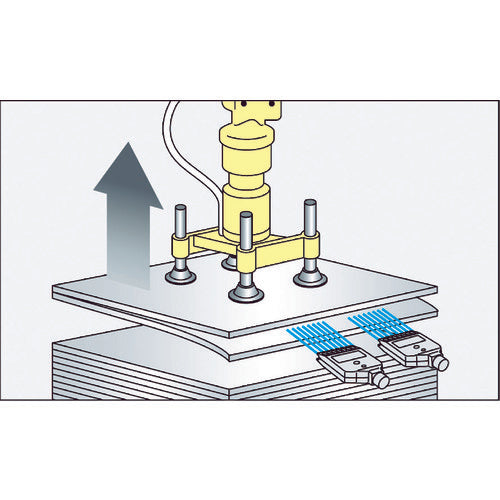

Catalog number: 3/8MTF-F121-46-010PPS Features: ●An air nozzle that sprays amplified air from a 1.0mm hole with great force. ●Unique flat design that sprays air more evenly. ●Approximately three times wider than conventional products (42mm wide), reducing the number of nozzles and reducing the effort required for installation. Applications: ●Draining and drying. ●Blowing away dirt. ●Air cooling. ●Cleaning. ●Peeling. ●Air curtains, etc. Specifications: Nozzle mounting port: R3/8 Nozzle shape: Wide flat Nozzle width (mm): 121 Nozzle length (mm): 90 Nozzle diameter (mm): 1.0 Air mounting port: R3/8 Exhaust outer diameter (mm): 121 Width (mm): 121 Total length (mm): 90 Screw size: R3/8 Screw dimensions: R3/8 Manufacturer's official part number: 3/8M TF-F 121-46-010 PPS Air consumption (NL/min): 1250 (at 0.3MPa) Material/Finish: Polyphenylene sulfide (PPS) Caution: This is an air nozzle for fixed equipment such as factories. It cannot be used as a nozzle for air guns (air dusters) because the specifications are not suitable.
