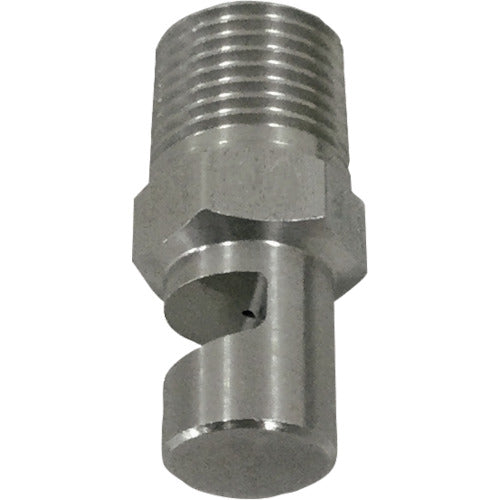

IKEUCHI Wide Angle Fan Nozzle YYP Series Stainless Steel 303 Thread 1/8 Male 130° 1/8MYYP07S303 1 pc

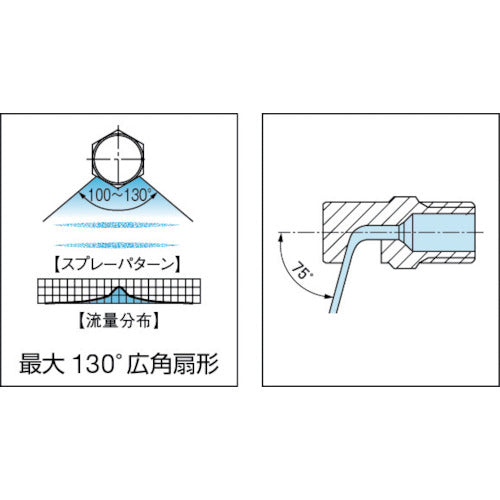

Catalogue number: 1/8MYYP07S303 Features: ● Produces a wide-angle fan-shaped spray despite low liquid pressure. Applications: ● For spraying to clean machinery and equipment or for extinguishing fires. Specifications: ● Spray angle (°): 130 (0.15 MPa) ● Spray volume (L/min): 0.70 (0.15 MPa) ● Thread size: R1/8 ● Dimensions (mm) Overall length: 23 ● Dimensions (mm) Hexagonal width: 10 ● Thread dimensions: R1/8 ● Standard pressure: 0.15 MPa ● Spray angle: 100 to 130° (75° elevation angle) Material/Finish: ● Stainless steel
