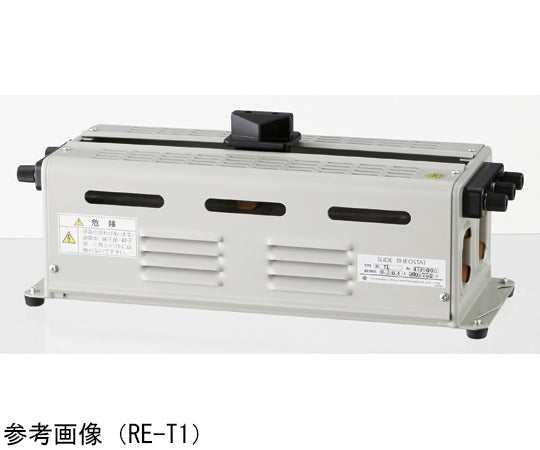

Slide resistor RE-T3 134-040 1 unit

The internal resistor is a double-core type, so it can be combined for a variety of uses. The voltage or current can be adjusted by sliding a brush over the resistance wire wound around an insulated ceramic tube to increase or decrease the resistance. In addition to using the internal resistors individually, you can connect the resistors in series or in parallel to obtain various variations. Safe current: 6/12A Total resistance: 3.4/0.85Ω Size: W357×D133×H132mm Weight: Approx. 2.9kg Product code: 134-040
