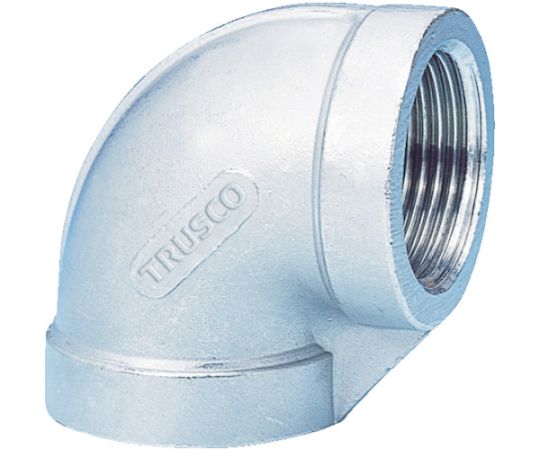

Screw-in pipe fitting SUS 90° elbow 10A TLL-10A 1 piece

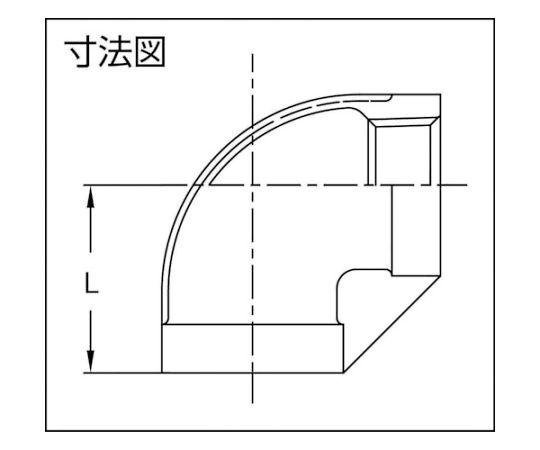

This is a stainless steel screw-in joint used in a variety of facilities. For water, oil and gas. Nominal diameter A: 10 Nominal diameter B: 3/8 - L (mm): 24 Maximum allowable pressure (MPa): 1.0 at room temperature Operating temperature range (℃): -20 to 220℃ Maximum operating pressure: 1.0MPa at room temperature Operating temperature range: -20 to 220°C Material/Finish: Stainless steel (SCS13A) Caution: Please note that performance cannot be guaranteed if dirt, dust, oil, etc. adheres to the product. Be careful not to touch the screw parts with bare hands as you may cut your hands. Country of Origin: China Code number: 819-1418
