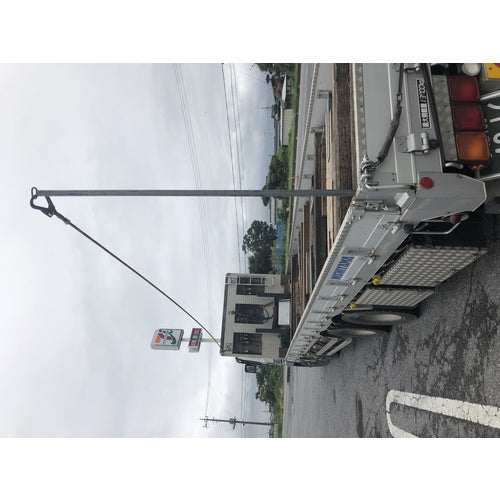

Matsuura New Tetron horizontal lifeline 16mmΦ x 20m with hooks on both ends and tensioner on one side NEW-TETORON-WF-1620 1 piece
Matsuura New Tetron horizontal lifeline 16mmΦ x 20m with hooks on both ends and tensioner on one side NEW-TETORON-WF-1620 1 piece
Regular price
¥34,848
Regular price
Sale price
¥34,848
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: NEW-TETORON-WF-1620 Features: ●Horizontal lifeline with tensioner (end hook direct connection rotating type). ●Horizontal lifeline can be easily installed by hand. ●Horizontal lifeline with New Tetron rope 16mmΦ (3 strands) specification with large diameter (50mm) hooks on both ends. ●New Tetron rope has little shrinkage and hardening, excellent abrasion resistance, and almost no loss of strength when wet, so it is a high-performance rope developed as a lifeline rope to make high-altitude work such as construction work and painting work safer. ●The lifeline tensioner tension is 10 to 20 kgf and can be easily stretched and contracted by hand. Uses: ●As a horizontal lifeline rope to make high-altitude work in construction work, painting work, etc. safer. Specifications: ●Diameter (mm): 16 ●Hook mouth opening (mm): 50 ●Length (m): 20 ●Hook mouth opening (mm) main line side: 50 ●Color: Yellow (with red line) ●Finished length (m): 20 ●Breaking load (kN): approx. 32 (approx. 3250kgf) Not a guaranteed value ●Hook tensile strength (kN): 14 (approx. 1420kgf) ●Color: Yellow (with red line) ●Horizontal movement safety device ●Large diameter hooks on both ends (with tensioner on one side) ●Rope end reverse Satsuma processing (folded back weave) ●Hook part with tensioner: Hook direct connection rotation type (97 Harip rotation type) Material / Finish: ●Rope material: New Tetron (polyester) 3-ply ※Centre part: PP Danline white ●Hook part: Steel ●Hook part on tensioner side: Steel, stainless steel (FS-90ST + 97HR-3) Note: After inserting the rope into the tensioner as a horizontal main rope, be sure to tie a knot at the end of the rope to prevent it from slipping out. This product has a reverse Satsuma finish (folded back braid) on the rope end to prevent the rope from slipping out.
