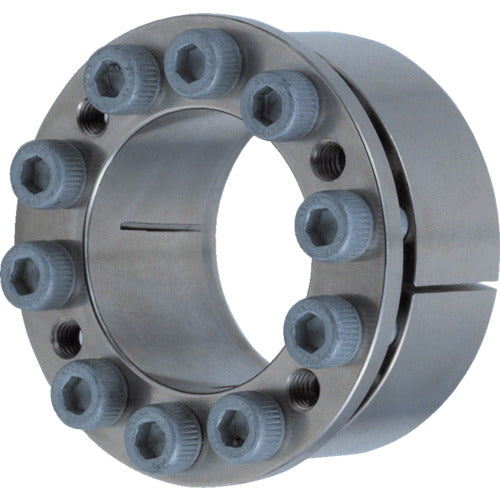

ISEL Mechalock MKA Series Inner Diameter 35 MKA-35-57 1 pc

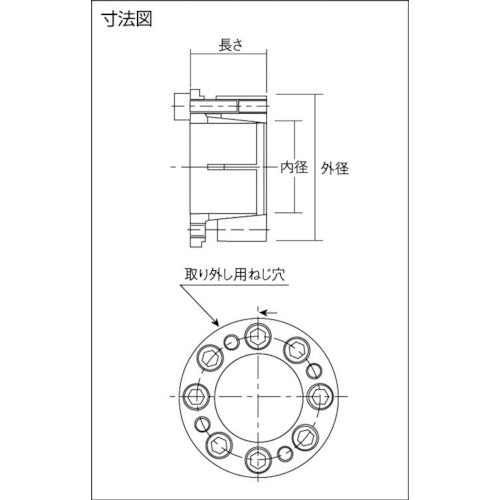

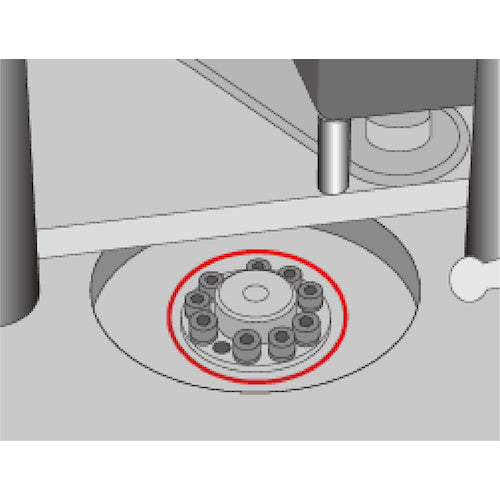

Catalog number: MKA-35-57 Features: ● Rust-resistant due to rust-proof plating. ● Compact type with minimized outer diameter. ● Excellent centering effect due to the inlay on the flange of the inner ring. ● Phase alignment and positioning can be freely adjusted. ● When tightening the lock bolt, the hub does not move in the axial direction. ● No backlash, so there is no rattle. Applications: ● Machine tools, conveying equipment, robots, various automatic machines. Specifications: ● Inner diameter (mm): 35 ● Outer diameter (mm): 57 ● Length (mm): 30 ● Maximum allowable torque (N・m): 548 ● Allowable thrust (N・m): 31.3 ● Mounting bolt: M6×20 ● Simple rust-proof plating type ● Operating temperature range: -20 to 100℃ ● Number of bolts: 4 Material/Finish: ● Steel ● Surface treatment: Electroless nickel plating Set contents/Accessories: ● Shipping charges are charged separately
