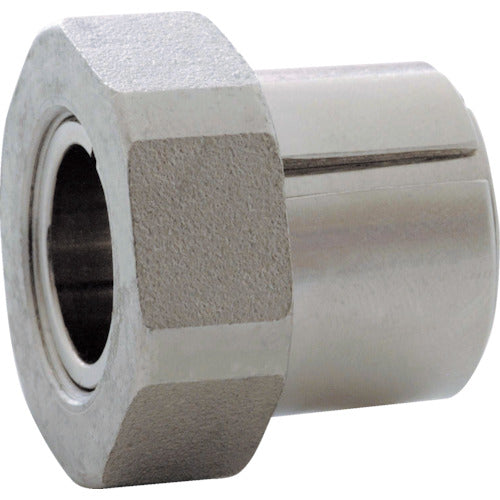

ISEL Mechalock MKN Series Inner Diameter 24 MKN-24-34 1 pc

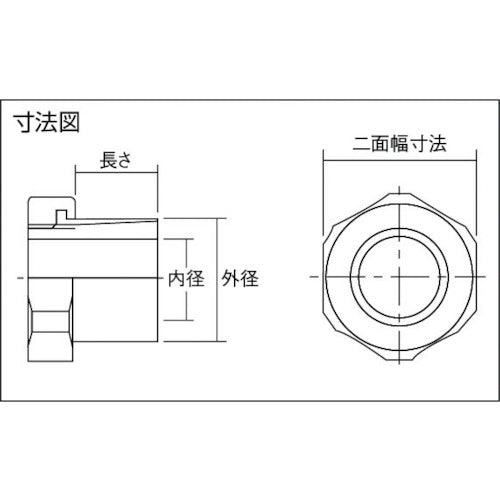

Catalogue number: MKN-24-34 Features: ●Positioning and phase alignment can be performed at any position, allowing for non-backlash fastening. ●Kanigen plating (simple rust-proof electroless nickel plating type) prevents rust. Applications: ●For use in semiconductor liquid crystal devices and clean rooms. Specifications: ●Inner diameter (mm): 24 ●Outer diameter (mm): 34 ●Length (mm): 24 ●Maximum allowable torque (N・m): 314 ●Allowable thrust (N・m): 25.5 ●Two-sided width dimension (mm): 41 ●Simple rust-proof nut tightening type ●Operating temperature range: -20 to 100°C Materials/Finish: ●Steel ●Surface treatment: Electroless nickel plating Set contents/Accessories: ●Freight charges apply separately
