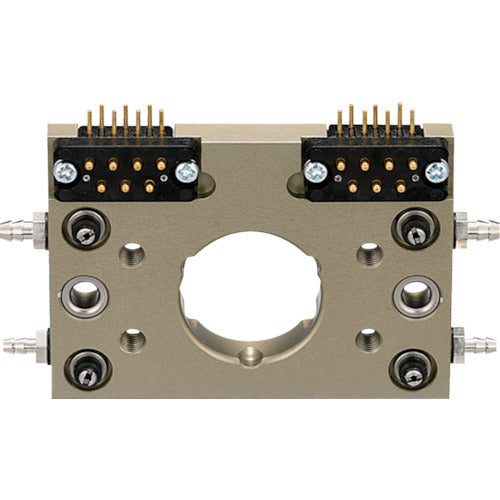

Einz Tool Changer Tool Side OX-SSBI 1 pc

Catalog number: OX-SSBI Features: ● Equipped with a unique detachment mechanism. (Patent No. 4126074) ● Built-in fail-safe mechanism. ● Robot hand can be easily replaced in a short time. ● Air option can be added. Specifications: ● Type: Tool side ● Width (mm): 85 ● Depth (mm): 65 ● Height (mm): 13.5 ● Payload capacity (kg): Up to 3 ● Pull-in force/push-out force (N): 1500/480 ● Payload capacity: Up to 3kg ● Air pressure used: 0.5-0.7MPa ● Thickness when connected: 29mm ● Connector: Probe connector (solder fixed type) ● Electrical contacts: 7 cores x 2 (2A DC24V Max) ● Pipe connection: 4 circuits (M5) ● Position repeatability: ±0.02mm Material/Finish: ● Super duralumin
