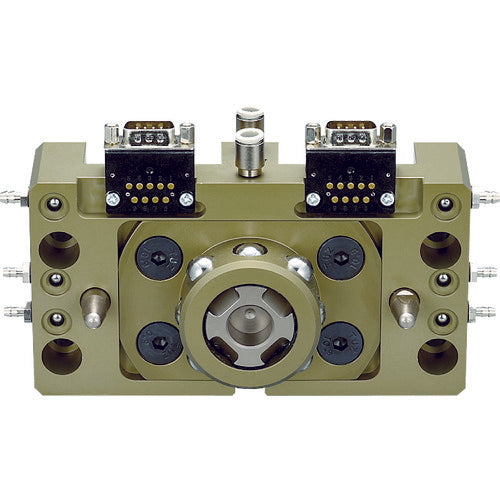

Einz Tool Changer Robot Side OX-LB 1pc

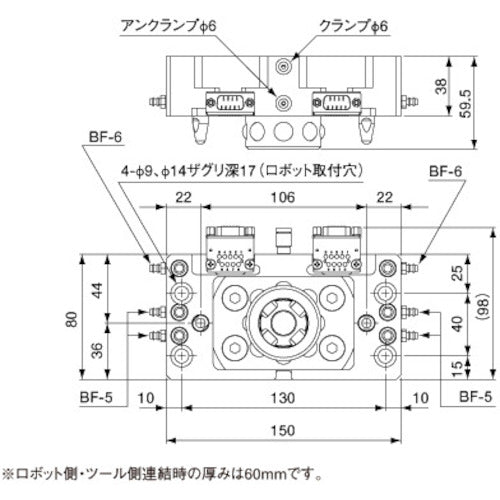

Catalog number: OX-LB Features: ● Equipped with a unique release mechanism. (Patent No. 4126074) ● Built-in fail-safe mechanism. ● Built-in air check valve. ● Air option can be added. Specifications: ● Type: Robot side ● Width (mm): 150 ● Depth (mm): 59.5 ● Height (mm): 98 ● Weight capacity (kg): Up to 35 ● Pull-in force/push-out force (N): 4000/750 ● Thickness when connected (mm): 60 ● Electrical contacts: 9 cores x 2 2A DC24V Max ● Connector formation: D-SUB connector & probe connector ● Pipe connection: 6 circuits (M5) ● Air pressure used: 0.5 to 0.7MPa ● Position repeatability (mm): ±0.02 Material/Finish: ● Made of super duralumin
