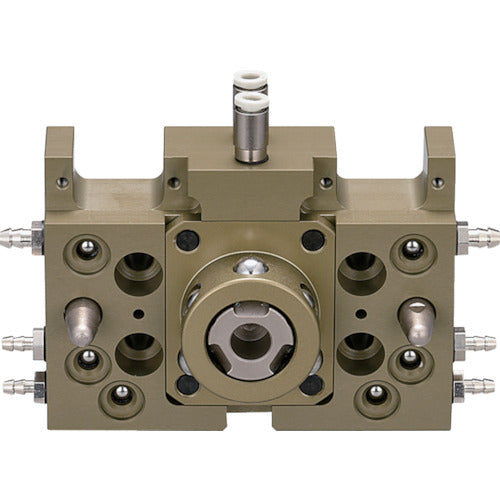

Einz Tool Changer Robot Side OX-SBN 1 pc

Catalogue number: OX-SBN Features: ●Robot hands can be easily replaced in a short time. ●Equipped with a unique detachment mechanism. (Patent No. 4126074) ●Built-in fail-safe mechanism. ●Built-in air check valve. (Robot side) ●Air options can be added. Specifications: ●Type: Robot side ●Width (mm): 92 ●Depth (mm): 39.5 ●Height (mm): 81 ●Carrying capacity (kg): Up to 10 ●Pull-in force/push-out force (N): 1700/550 ●Carrying capacity: Up to 10kg ●Air pressure used: 0.5-0.7MPa ●Thickness when connected: 40mm ●No connector ●Pipe connection: 6 circuits (M5) ●Position repeatability: ±0.02mm Material/Finish: ●Super duralumin
