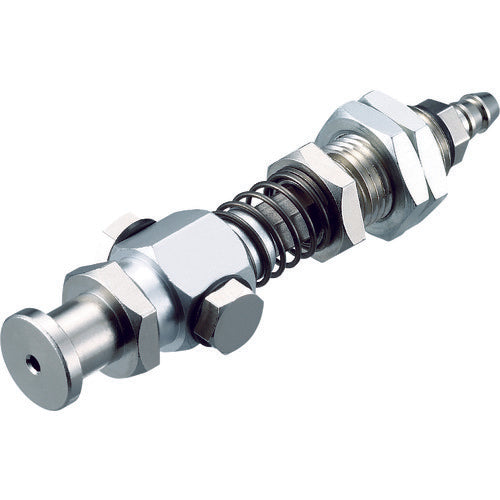

Einz Suction bracket, non-rotating, for small VFILB2-SH 1 piece

Einz Suction bracket, non-rotating, for small VFILB2-SH 1 piece

JAN：4570198792699 　
Ainz Products Bearings, drive equipment, transmission parts Mechatronics Parts Robot hand parts Suction bracket
¥2,459
¥2,459
Sale Sold out
Shipping calculated at checkout.

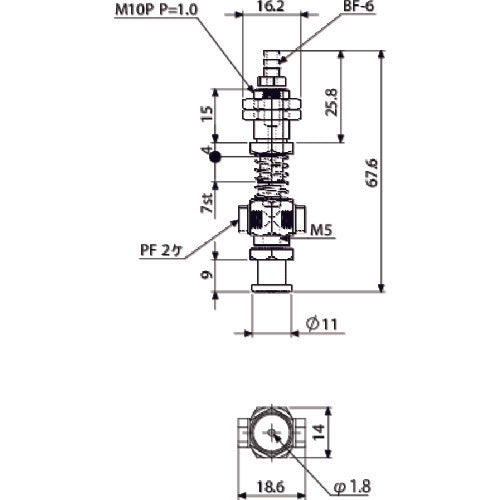

Catalog number: VFILB2-SH Features: ● Shock is absorbed by the built-in spring. ● Suction pads can be easily attached. ● Anti-rotation structure with hexagonal shaft. Specifications: ● Diameter (mm): 18.6 ● Mounting connection: M10 x 1.0 ● Height (mm): 67.6 ● Stroke (mm): 7 ● Vacuum outlet ● Series: Small ● Shaft: Anti-rotation type ● Mounting screw: M10 * 1.0 ● Connection hose diameter: φ6
View full details
