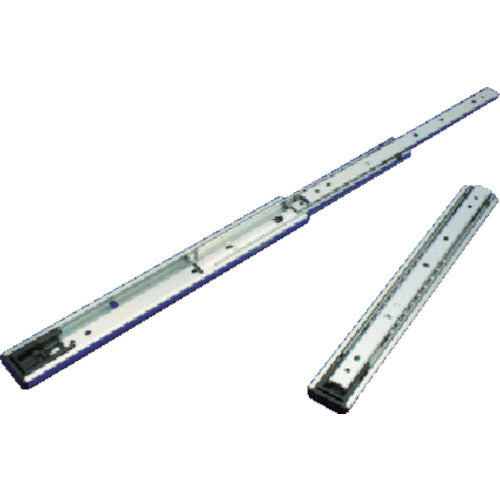

Accuride Touch & Release Slide Rail 550mm C3278-55 1 piece

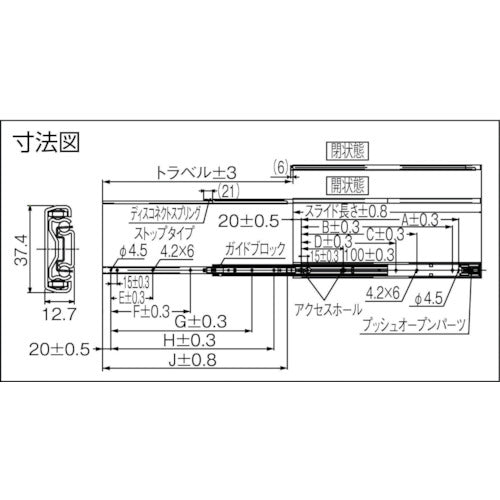

Catalog number: C3278-55 Features: *Slide rail with touch and release mechanism. Therefore, handles or knobs are not required, and cabinets with a flat design can be created. *Push-open lock and release are performed by pushing (2 mm) from the closed position. *Full-travel slide rail that allows drawer members to be pulled out completely. *Overall length ranges from a minimum of 250 mm to a maximum of 550 mm. *The disconnect spring engages the stopper when pulled out and is free when pushed in, and can be manually released to remove the drawer member. Applications: *Drawers for housing equipment, product shelves, etc. ●Computers ●Steel furniture cabinets etc. ●Home appliances Specifications: ●Width (mm): 12.7 ●Height (mm): 37.4 ●Length (mm): 550 ●Travel distance (mm): 555 ●Rated load (N) pair/vertical: 216 ●For light loads ●3-member full travel type ●Drawer members can be detached ●Mounting screws: Bind screws (M4) ●Sound-proof type ●Touch & release Material/Finish: ●Steel (SPCC) ●Surface treatment: Trivalent chromium plating finish Note: ●When used horizontally, the rated load is 1/4 of the indicated load.
