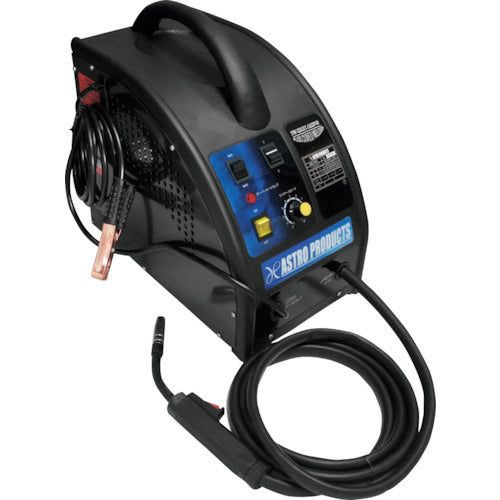

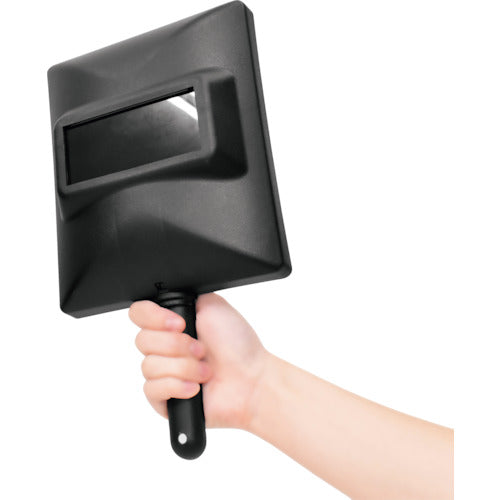

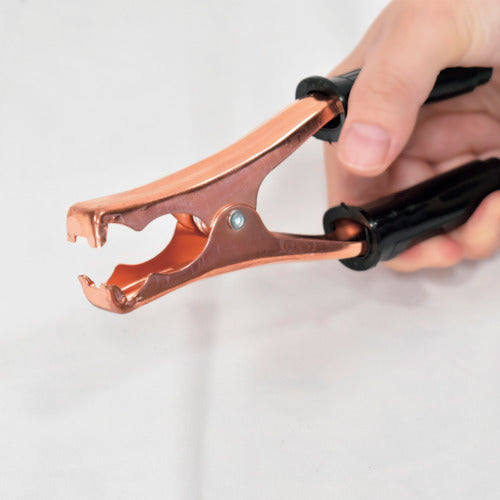

Catalog number: 2005000002618 Features: ● Semi-automatic welding machine that can be used with a household AC100V power source. ● No gas is required as it is a non-gas type that uses flux-cored wire. ● Flux wires of Φ0.6, 0.8, and 0.9 mm can be used, making it suitable for a wide range of users from beginners to professionals. (Φ0.6 and 0.9 mm require separate tips and wires.) ● With four types of voltage settings and a built-in inverter that converts AC to DC, it can stabilize the voltage at a constant level, allowing welding to suit various plate thicknesses. Specifications: ● Input voltage (V): AC100 ● Width (mm): 240 ● Depth (mm): 410 ● Height (mm): 395 ● Power cord length (m): 1.8 ● Weldable materials: mild steel, stainless steel ● Power supply AC100V 50/60Hz ● Rated power consumption: 2kW ● Rated primary current: 27.5A Rated secondary current 25A-75A ● Recommended plate thickness: 1.0-3.5mm Set contents/accessories: ● Wire brush. Chipping hammer x 1 ● Welding mask x 1 ● Test φ0.8mm wire (for mild steel) x 1 ● φ0.8mm spare tip x 2 ● Wrench x 1 ● Clamp x 2
