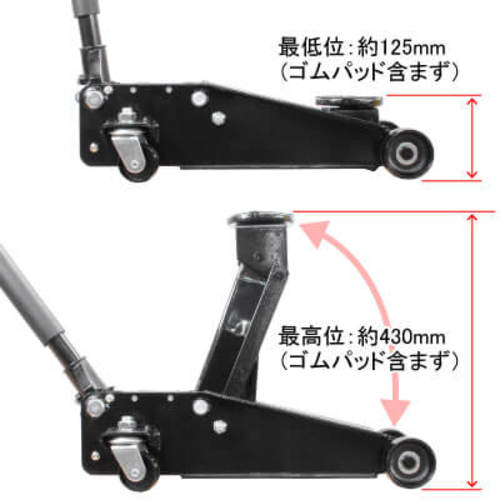

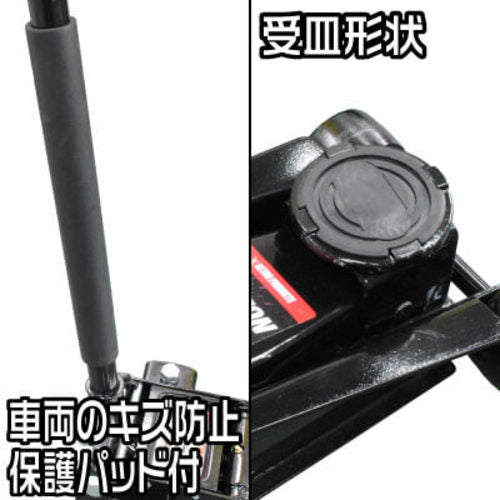

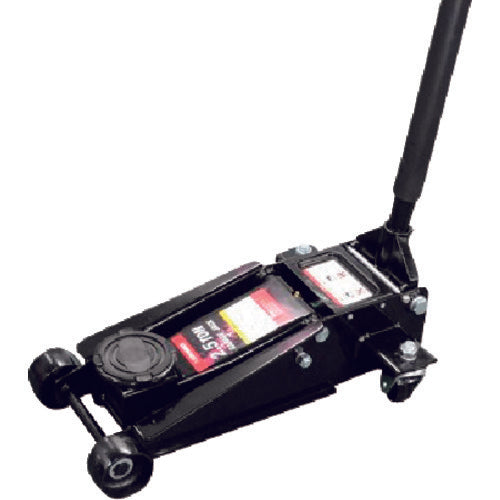

Catalog number: 2006000001403 Features: ●This garage jack has a load capacity of 2.5t. ●It can be used for a wide range of vehicles, from light cars to regular cars. Specifications: ●Lifting force kN(t): 25(2.5) ●Stroke(mm): 295 ●Total length(mm): 545 ●Width(mm): 335 ●Depth(mm): 205 ●Height(mm): 1090 ●Allowable load(t): 2.5 ●Oil volume: Approx. 100ml ●Number of strokes to reach highest position: Approx. 16 times (unloaded) ●Lift arm length: 250mm ●Frame height: 150mm ●Receiving pan diameter: φ110mm ●Receiving pan shaft diameter: 30mm Set contents/accessories: ●Rubber pad x 1 (installed) Caution: ●Never hang a weight that exceeds the load capacity. ●After jacking up, immediately hang a rigid rack on the vehicle.
