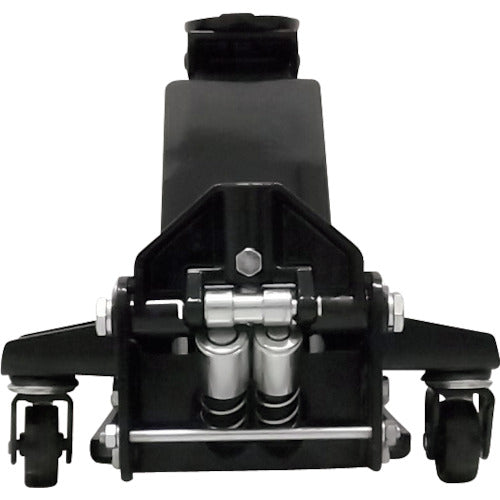

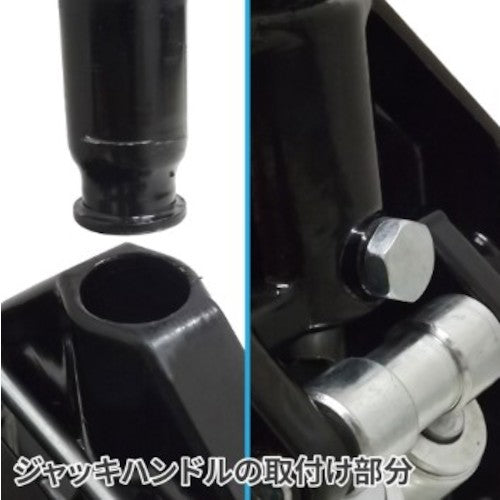

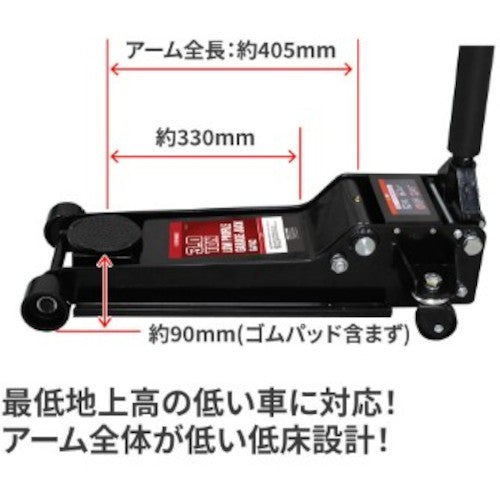

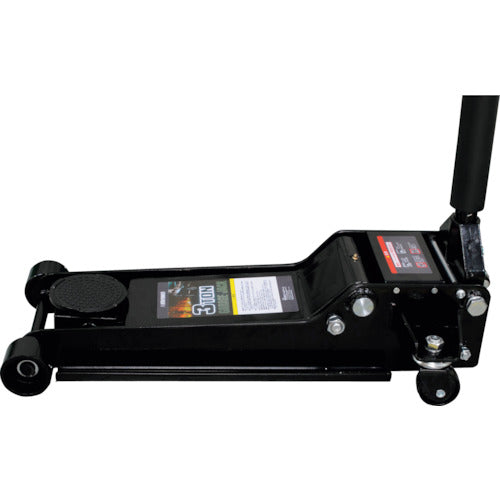

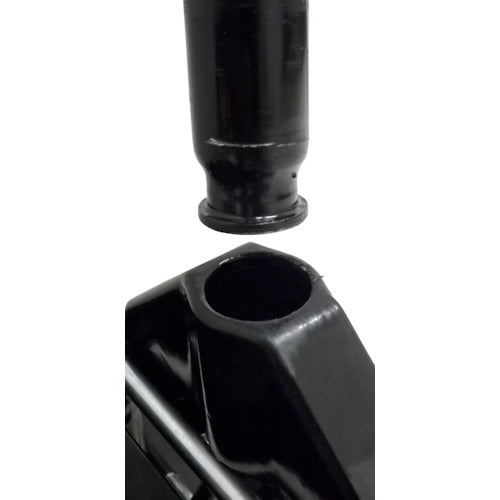

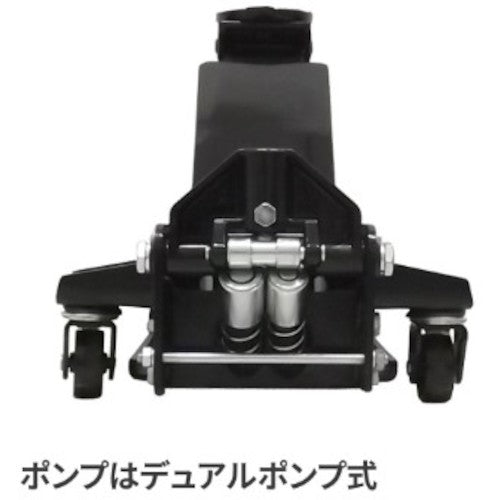

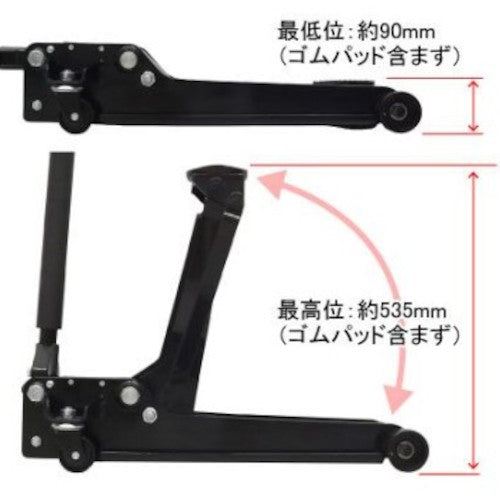

Catalog number: 2006000001427 Features: ●This is a low-floor type jack that can handle loads up to 3000 kg. ●The low-floor design with a low arm makes it easy to reach jack-up points that are deep inside, making it compatible with cars with low ground clearance. ●Two pump pistons allow the arm to be raised with a small stroke. Specifications: ●Width (mm): 360 ●Depth (mm): 720 ●Height (mm): 220 ●Handle length (mm): 1270 (when installed) ●Allowable load (t): 3 ●Weight: 42 kg (excluding handle) ●Lowest position: Approximately 90 mm (excluding rubber pad) ●Highest position: Approximately 535 mm (excluding rubber pad) ●Lift arm length (mm): 405 ●Frame height (mm): 155 ●Receptacle diameter (mm): φ115 ●Oil volume (ml): Approximately 250 Set contents/accessories: ●Jack handle x 1 set (upper and lower) ●Rubber pad x 1
