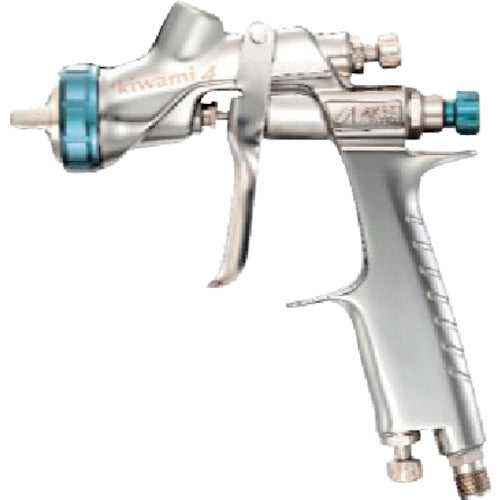

Anest Iwata Spray Gun (Gravity Type) KIWAMI4 Center Cup Nozzle Diameter Φ1.4mm Pattern Opening 310mm KIWAMI4-V14WB2 1 Piece

Catalog number: KIWAMI4-V14WB2 Features: ● Pursuing "more reliable quality and stability while maintaining basic performance". ● Lightweight with ergonomic design. ● Improved maintainability. ● Linearly responsive pattern adjustment device. ● Stability improved with air valve seat set with few individual differences. ● Anest Iwata's unique V-slit nozzle and WB2 cap provide excellent atomization characteristics. ● Thin film flat pattern is possible, regardless of solvent/water-based, improving unevenness of highly difficult paint colors and reducing dripping and accumulation during clear coating. Applications: ● For automobile repairs. Specifications: ●Nozzle diameter (mm): 1.4 ●Required compressor (kW): 1.5-2.2 ●Air consumption (L/min): 390 ●Pattern opening (mm): 310 ●Atomization stage: Highly fine ●Air attachment port: G1/4 male ●Cup attachment port: G1/4 female ●Spraying distance (mm): 200 ●Paint supply method: Gravity type ●Paint spray volume (ml/min): 160 ●Gravity type Set contents/accessories: ●Frame ●Sheet
