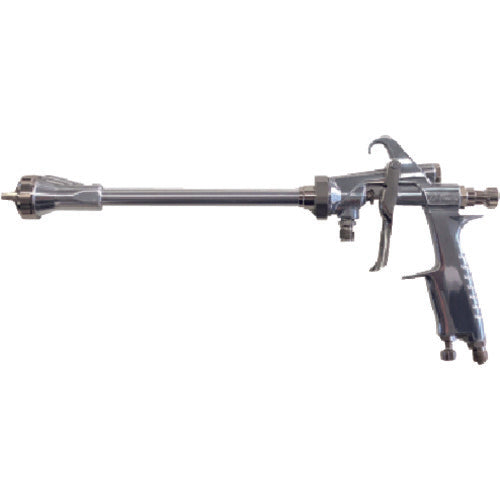

Anest Iwata Long neck gun Neck bend angle 90 degrees Nozzle diameter Φ1.0mm Neck length 300mm LW1-10E1-9030 1 unit

Catalog number: LW1-10E1-9030 Features: ● Ergonomic design with emphasis on functionality. ● Model change allows for easy maintenance. ● Linearly responsive pattern adjustment device and air valve seat set with little individual variation have been achieved. Applications: ● For painting hard-to-reach places and the inside of pipes. Specifications: ● Nozzle diameter (mm): 1.0 ● Required compressor (kW): 1.5-2.2 ● Air consumption (L/min): 90 ● Pattern opening (mm): 175 ● Atomization stage: General purpose ● Air attachment port: G1/4 ● Cap type: E1 ● Neck bending angle (°): 90 ● Cup attachment port: G1/4 ● Paint supply method: Pressure feed type ● Spray distance (mm): 200 ● Spray air pressure (MPa): 0.29 ● Neck length (mm): 300 ● Paint spray amount (ml/min): 150 Material/Finish: ● Body: Aluminum ● Wetted parts: Stainless steel
