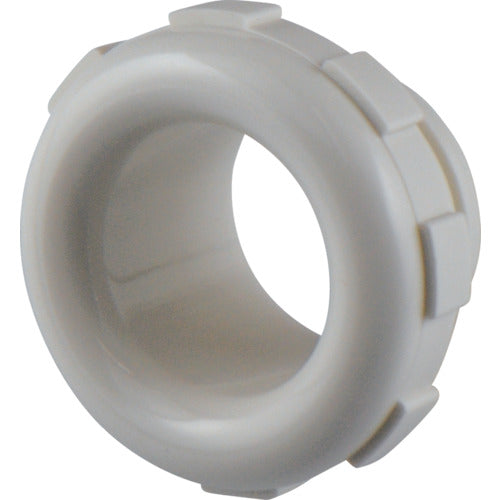

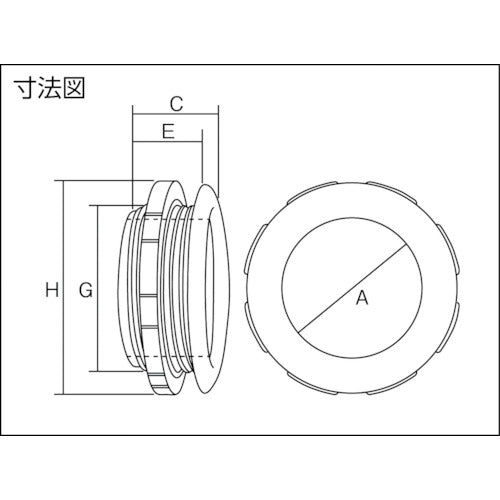

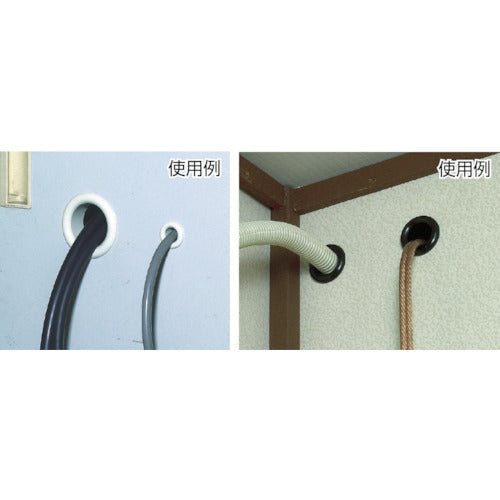

Catalog number: BN20S-IV Features: ● Made of nylon resin with excellent heat resistance, impact resistance, and abrasion resistance. ● Can be used for a wide range of applications, such as boards, concrete walls, and peripheral equipment for machines and office automation equipment. ● Both inner ends are chamfered to prevent scratches on the surface of the object being penetrated. Specifications: ● Color: White ● Mounting hole dimensions (mm): 27 ● Dimensions (mm) A: 20 ● Dimensions (mm) C: 21 ● Dimensions (mm) E: 17 ● Dimensions (mm) G: 26 ● Dimensions (mm) H: 37 Material/Finish: ● Nylon
