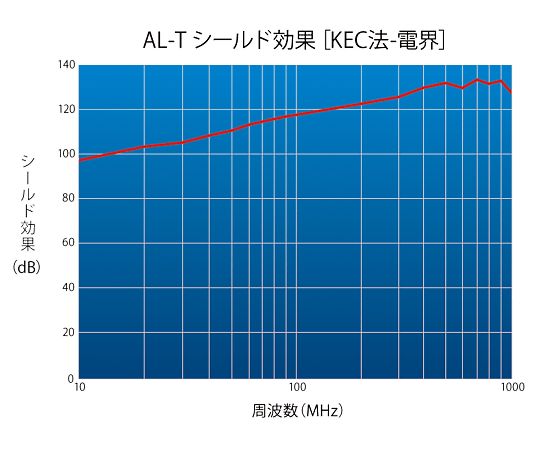

It is suitable for EMI shielded rooms, enclosure grounding, shielding, and shield characteristic measurement.
Since a conductive adhesive is used, the shielding effect is not reduced.
Flexible, so it is easy to wrap and attach. Width x thickness x length: 19mm x 110μm x 20m
Quantity: 1 roll

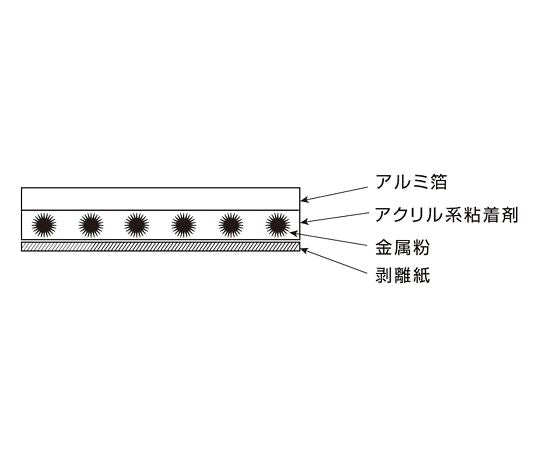

Metal foil thickness: 50μm
Adhesive layer thickness: 60μm
Adhesive: Acrylic adhesive (contains metal powder)
Adhesive strength: 10N/25mm or more (180° peel to SUS)
Contact resistance: 0.005Ω/25mm□/19.6N
Flame retardant: UL510FR
