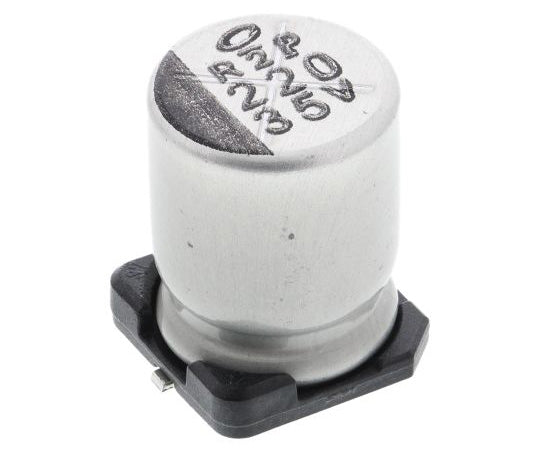

Aluminum electrolytic capacitor 220μF 35V dc 1 bag (10 pieces) UWT1V221MNL1GS 1 bag (10 pieces)

Aluminum electrolytic capacitor, WT series, 105°C This is a chip type that operates over a wide temperature range from –55 to +105°C. Rated voltage range: 4 → 50 V Rated capacitance range: 0.1 → 1500 μF Designed for surface mounting on high density PC boards. Ideal for automatic installation machines that use carrier tape. Compliant with RoHS Directive (2011/65/EU). Lead-free WT series Quantity: 1 bag (10 pieces) Capacitance: 220μF Mounting Type: Surface Mount Dimensions: 8 (Dia.) x 10mm Height: 10mm Package/Case: 5101-4 Lead pitch: 3.1mm Lead diameter: 1.1mm Lifespan: 1000h Diameter: 8mm Ripple current: 190mA Leakage current: 77 μA Tolerance: ±20% Tolerance (negative): -20% Technology: Electrolysis RoHS Compliance Status: Compliant Code number: 739-2854
