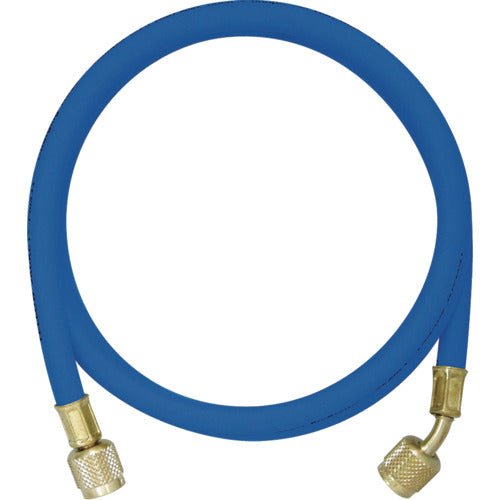

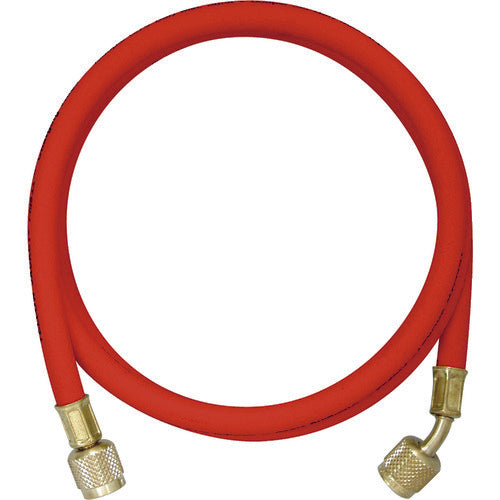

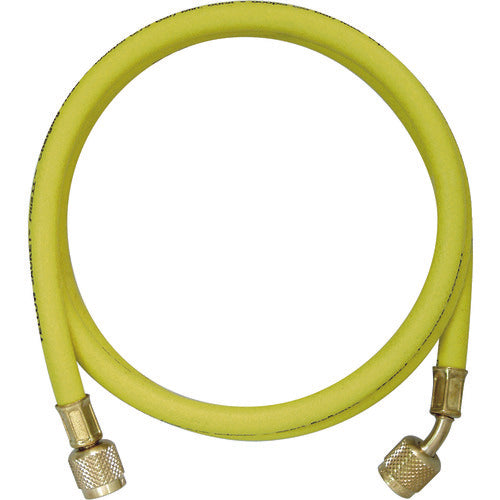

Catalog number: Y409678C Features: ●Double O-ring valve and high-quality nylon packing provide excellent airtightness. (HFC-resistant) ●Large, easy-to-turn handle that opens the flow rate to full in one and a half turns. (Side-type) ●Slide-type for easy piston replacement. ●Uses a Plus [R2] hose and HFC-resistant special nylon material that is resistant to refrigerant and has high pressure resistance for safe operation without refrigerant penetration. ●Suitable for pressure and temperature checks of systems, vacuum and dry checks, and refrigerant charging. Specifications: ●Low pressure gauge (MPa): -0.1 to 1.7 ●High pressure gauge (MPa): 0 to 3.5 ●High pressure gauge (MPa): 0 to 3.5 ●Connection diameter: 1/4 flare (UNF7/16-20 threads) ●Compatible refrigerants: R407C, R404A, R134a ●Gauge diameter (mm): 80 ●Included case: Yes Material/Finish: ●Aluminum ●Brass ●Resin Set contents/Accessories: ●Charging hose 92 cm x 3 ●Case
