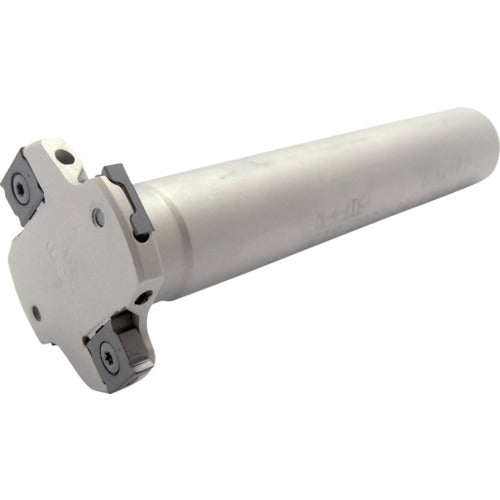

Iscar Mini Tang Slot ETS D032-04-W16-LN08 1 pc
Iscar Mini Tang Slot ETS D032-04-W16-LN08 1 pc
Regular price
¥64,865
Regular price
Sale price
¥64,865
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: ETS D032-04-W16-LN08 Features: ●Cost reduction by using vertically placed 4-corner insert. ●Reduced cutting resistance allows for excellent surface finish while suppressing vibration and achieving long tool life. ●Vertical insert provides high rigidity and stability. Applications: ●T-slot machining Specifications: ●Number of teeth: 4 ●Blade row: 2 ●Cutting edge ap (mm): 4 ●Blade diameter φD (mm): 32 ●Shank diameter φd (mm): 16 ●Length L (mm): 90 Maximum cutting ●Iscar X Other milling/cutters Material/Finish: ●IC910, IC928
