INOAC Plate-type shock-absorbing towing caster (urethane wheel) Fixed Φ200 Spring-loaded (red) KTU-200WK-RS 1 piece

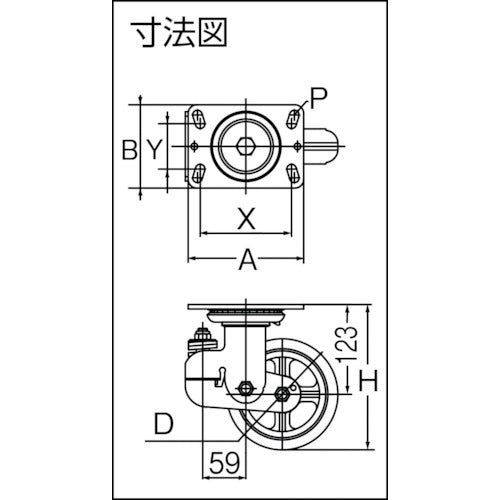

Catalogue number: KTU-200WK-RS Features: ● "Spring series" that reduces road shocks with the power of a spring. ● Excellent shock absorption when going over small bumps. ● Ideal for towing. Applications: ● Used for transporting precision machinery, automobile parts, and ceramic parts. ● Ideal for carts transporting ceramics, tableware, and products that are easily scratched. ● Carts for lateral transport between processes in factories with long material handling distances. ● Work at automobile manufacturers and airports, etc. ● Work requiring quietness. Specifications: ● Wheel diameter D (mm): 200 ● Type: Fixed type ● Set load (daN): 392 ● Set load (kgf): 400 ● Wheel width (mm): 48 ● Mounting height H (mm): 252 ● Mounting seat A (mm): 158 ● Mounting seat B (mm): 114 ● Mounting pitch X (mm): 133-125 ● Mounting pitch Y (mm): 86-62 ● Mounting hole diameter P (mm): 14 ● Plate type ● Fixed type Material/Finish: ● Metal fittings: Steel ● Wheels: Cast iron wheels, urethane
