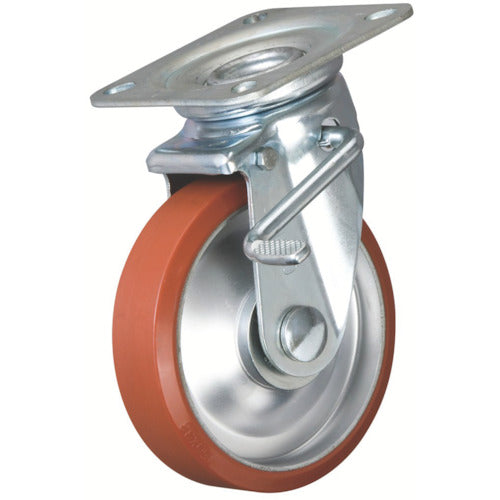

INOAC Medium Load Caster Loglan with Stopper and Swivel Fitting Φ100 P-100WJS 1 pc

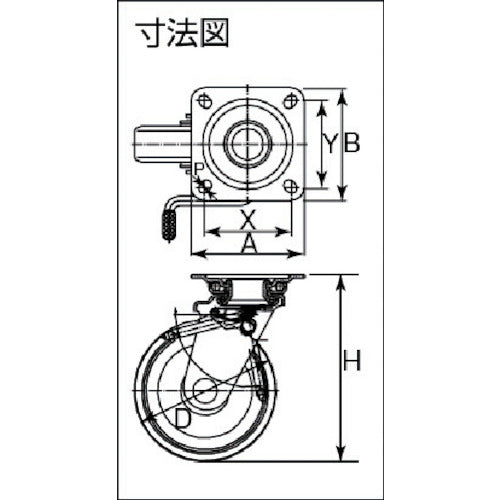

Catalogue number: P-100WJS Features: ●Compared to rubber wheels, it is suitable for heavy loads. ●Does not soil the floor surface, and maintains its beauty. ●Excellent wear resistance. Applications: ●Ideal for various hand-pushed transport carts on oily surfaces. Specifications: ●Wheel diameter D (mm): 100 ●Type: Swivel (with double stopper) ●Allowable load (daN): 176.4 ●Allowable load (kgf): 180 ●Wheel width (mm): 32 ●Mounting height H (mm): 144 ●Mounting seat A (mm): 95 ●Mounting seat B (mm): 95 ●Mounting pitch X (mm): 70-73 ●Mounting pitch Y (mm): 70-73 ●Mounting hole diameter P (mm): 10.5 ●Swivel type (with double stopper) ●Plate type ●Locks the swivel part and wheels at the same time Materials/Finish: ●Hardware: Steel ●Wheels: Steel wheels, urethane
