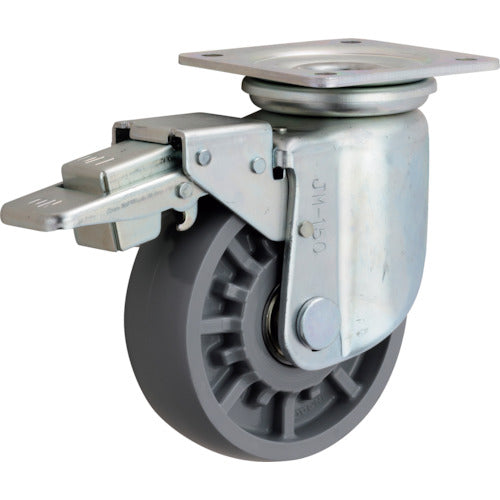

INOAC Low start, high durability elastomer wheel, 200 diameter, with swivel bracket and double stopper, HE-200WJS, 1 piece

Catalog number: HE-200WJS Features: ● Elastomer wheels that emphasize starting. ● Lightweight movement even under heavy loads, and excellent durability. ● By using elastomer resin that does not deform much under gravity, the contact area has been minimized. ● Lightweight movement and improved operability make it an excellent countermeasure against heavy labor. Applications: ● For logistics equipment and trolleys Specifications: ● Wheel diameter D (mm): 201 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 588 ● Allowable load (kgf): 600 ● Wheel width (mm): 53 ● Mounting height H (mm): 251 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 112 ● Mounting pitch Y (mm): 112 ● Mounting hole diameter P (mm): 14 ● Free-wheeling (with stopper) Material/Finish: ● Metal fittings: Steel ● Wheels: Elastomer
