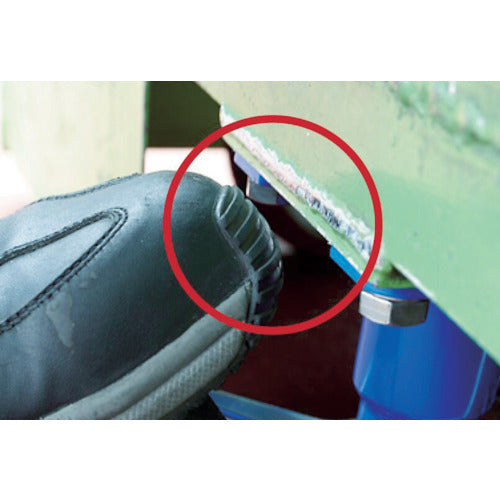

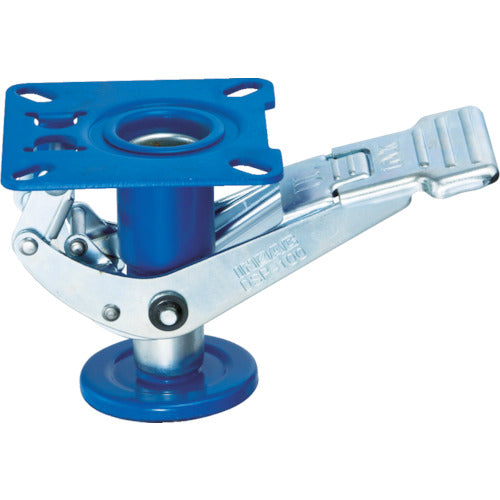

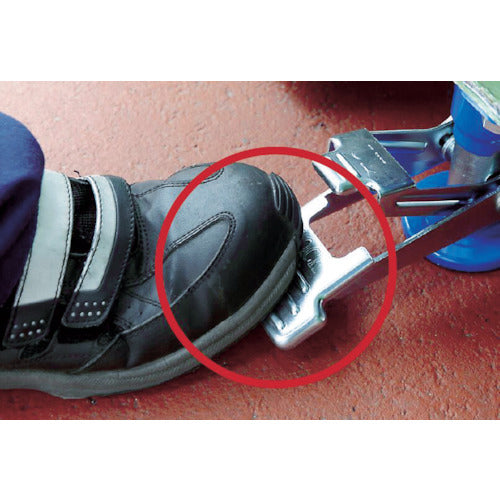

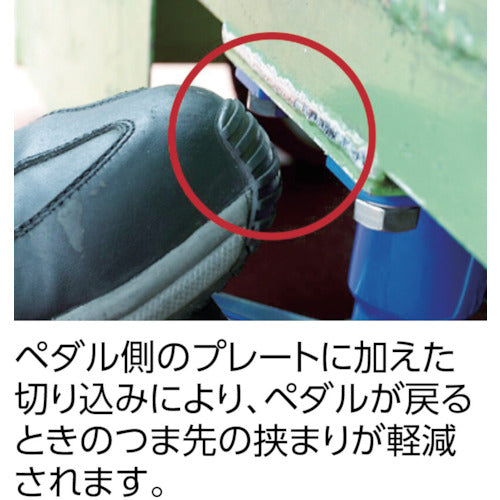

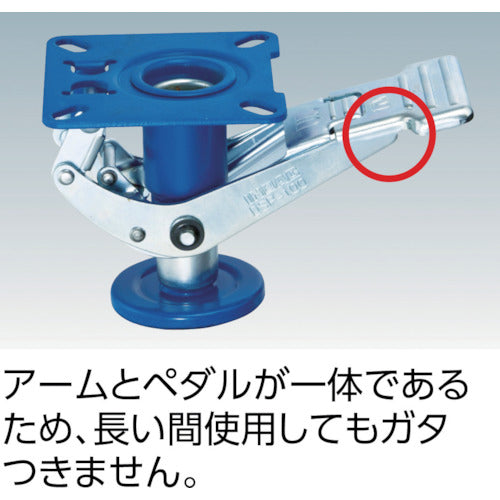

Catalogue number: DSP-200 Features: ●Lock pedal has been enlarged to make it easier to step on with safety shoes. ●The arm and lock pedal are integrated, so there will be no wobble even after long-term use. ●Safety is improved by rounding the corners of each pedal with a drawing process, and the notches in the plate prevent safety shoes from getting pinched. Specifications: ●Allowable load (daN): 343 ●Allowable load (kgf): 350 ●Maximum load capacity (kg): 350 ●Appropriate mounting height (mm): 242 ●Minimum height (mm): 200 ●Maximum height (mm): 248 ●Stroke (mm): 48 ●Mounting base (mm): 120 x 120 ●Mounting pitch (mm): 85-100 x 85-100 ●Applicable wheels (mm): 200 Material/Finish: ●Steel
