IMAO Wedge Lock Clamper QCWE0625-10-SUS 1 pc

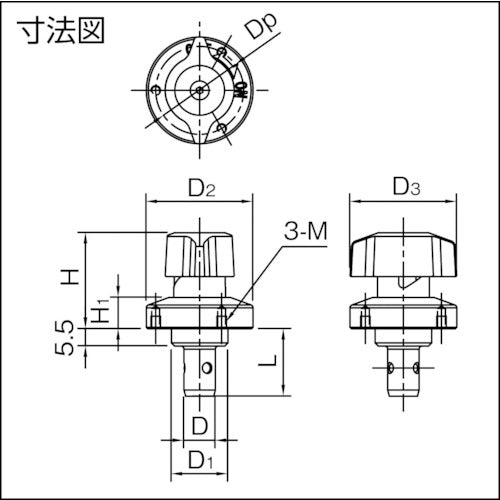

Catalog number: QCWE0625-10-SUS Features: ●ON and OFF are clear. ●Wedge mechanism prevents fluttering. ●Use in combination with a separately sold case. Applications: ●Replacing attachments for transport equipment. Specifications: ●Clamping force (N): 30 ●Compatible plate thickness (mm): 6-10 ●Dimensions (mm) D: 6 ●Dimensions (mm) D1: 14 ●Dimensions (mm) D2: 25 ●Dimensions (mm) D3: 25 ●Dimensions (mm) Dp: 21 ●Dimensions (mm) H: 24.5 ●Dimensions (mm) H1: 6.5 ●Dimensions (mm) L: 19.5 ●Dimensions (mm) M: M2 x 0.4 depth 3 ●Stainless steel type Material/Finish: ●Body: Stainless steel (SUS303) ●Shaft: Stainless steel (SUS420J2) ●Knob: SCS13 (equivalent to SUS304)
