IMAO Wedge Lock Clamper QCWE1034-14S 1 pc

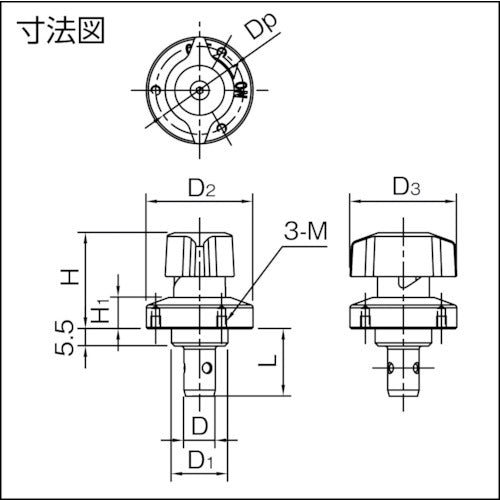

Catalogue number: QCWE1034-14S Features: ●ON and OFF are clear. ●Wedge mechanism prevents fluttering. ●Use in combination with a separately sold case. Applications: ●Replacing attachments for transport equipment. Specifications: ●Clamping force (N): 50 ●Compatible plate thickness (mm): 6-14 ●Dimensions (mm) D: 10 ●Dimensions (mm) D1: 18 ●Dimensions (mm) D2: 34 ●Dimensions (mm) D3: 34 ●Dimensions (mm) Dp: 28 ●Dimensions (mm) H: 31 ●Dimensions (mm) H1: 10 ●Dimensions (mm) L: 21.5 ●Dimensions (mm) M: M3 x 0.5 depth 4 ●Metal knob type Material/Finish: ●Body: Stainless steel (SUS303) ●Shaft: S45C electroless nickel plating ●Knob: SCS13 (equivalent to SUS304)
