IMAO Wedge Lock Clamper QCWE1034-20 1 pc

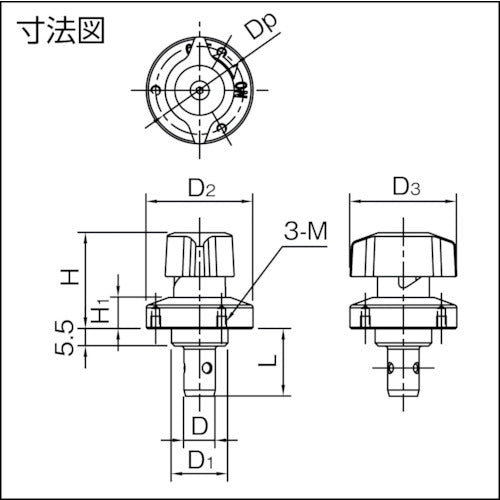

Catalogue number: QCWE1034-20 Features: ●ON/OFF is clear. ●Wedge mechanism prevents fluttering. ●Use in combination with a separately sold case. Applications: ●Replacing attachments for transport equipment. Specifications: ●Clamping force (N): 50 ●Compatible plate thickness (mm): 12-20 ●Dimensions (mm) D: 10 ●Dimensions (mm) D1: 18 ●Dimensions (mm) D2: 34 ●Dimensions (mm) D3: 34 ●Dimensions (mm) Dp: 28 ●Dimensions (mm) H: 31 ●Dimensions (mm) H1: 10 ●Dimensions (mm) L: 27.5 ●Dimensions (mm) M: M3 x 0.5 depth 4 ●Resin knob type Material/Finish: ●Body: Stainless steel (SUS303) ●Shaft: Carbon steel (S45C) electroless nickel plating ●Knob: Polyamide
