IMAO Thumb Turn Clamper (Free Approach) QCTHA0525-10 1 pc

IMAO Thumb Turn Clamper (Free Approach) QCTHA0525-10 1 pc

JAN：4995889614683 　
Fastening parts IMAO Work Vice Machinery Parts Mechatronics Parts One-touch clamp
¥5,386
¥5,386
Sale Sold out
Shipping calculated at checkout.

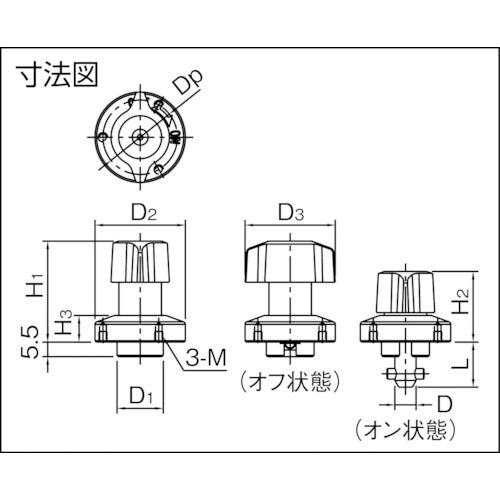

Catalog number: QCTHA0525-10 Features: ●Shaft storage type without interference. ●Used in combination with the separately sold cam case. Applications: ●Jig plate replacement. Specifications: ●Clamping force (N): 60 ●Compatible plate thickness (mm): 6-10 ●Dimensions (mm) D: 5 ●Dimensions (mm) D1: 14 ●Dimensions (mm) D2: 25 ●Dimensions (mm) D3: 25 ●Dimensions (mm) Dp: 21 ●Dimensions (mm) H1: 30 ●Dimensions (mm) H2: 20 ●Dimensions (mm) H3: 6.5 ●Dimensions (mm) L: 15.5 ●Dimensions (mm) M: M2 x 0.4 depth 3 ●Resin knob type Material/Finish: ●Body: Stainless steel (SUS303) ●Shaft: Carbon steel (S45C) electroless nickel plating ●Knob: Polyamide
