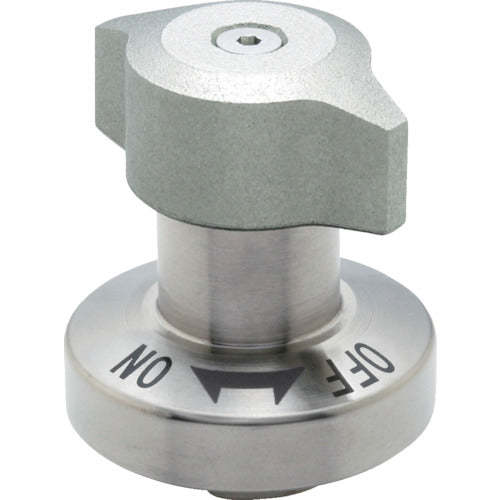

IMAO Thumb Turn Clamper (Free Approach) QCTHA0834-14S 1 pc

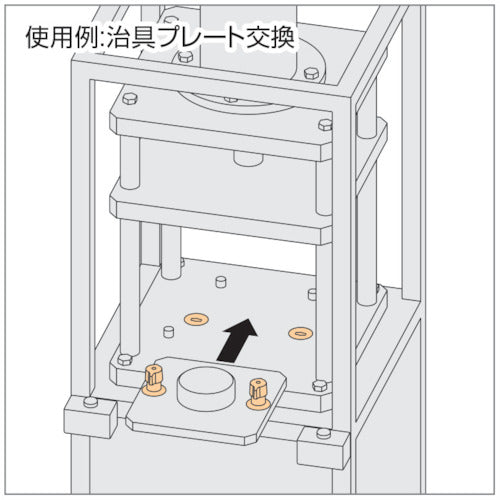

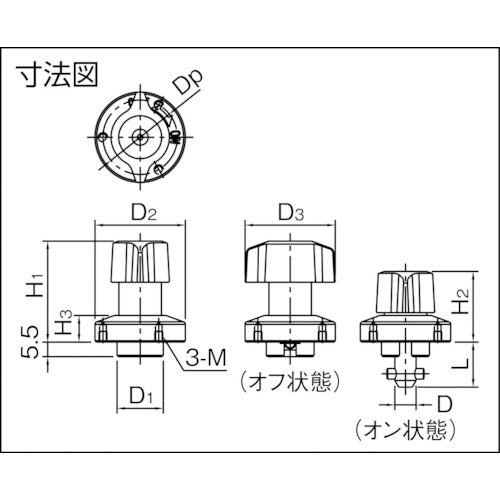

Catalog number: QCTHA0834-14S Features: ●Shaft storage type without interference. ●Used in combination with the separately sold cam case. Applications: ●Jig plate replacement. Specifications: ●Clamping force (N): 90 ●Compatible plate thickness (mm): 6-14 ●Dimensions (mm) D: 8 ●Dimensions (mm) D1: 18 ●Dimensions (mm) D2: 34 ●Dimensions (mm) D3: 34 ●Dimensions (mm) Dp: 28 ●Dimensions (mm) H1: 38 ●Dimensions (mm) H2: 26.5 ●Dimensions (mm) H3: 10 ●Dimensions (mm) L: 17 ●Dimensions (mm) M: M3 x 0.5 depth 4 ●Metal knob type Material/Finish: ●Body: Stainless steel (SUS303) ●Shaft: Carbon steel S45C electroless nickel plating ●Knob: SCS13 (equivalent to SUS304)
