IMAO Thumb Turn Clamper QCTH0525-10 1 pc

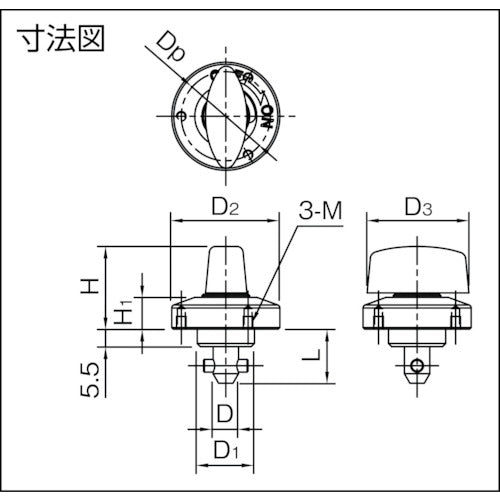

Catalogue number: QCTH0525-10 Features: ●ON and OFF are clearly indicated. ●Used in combination with the separately sold cam case. Applications: ●Camera unit replacement. Specifications: ●Clamping force (N): 60 ●Compatible plate thickness (mm): 6-10 ●Dimensions (mm) D: 5 ●Dimensions (mm) D1: 14 ●Dimensions (mm) D2: 25 ●Dimensions (mm) D3: 20 ●Dimensions (mm) Dp: 21 ●Dimensions (mm) H: 19.0 ●Dimensions (mm) H1: 6.5 ●Dimensions (mm) L: 15.5 ●Dimensions (mm) M: M2 x 0.4 depth 3 ●Dimensions (mm) d: 5 ●Resin knob type Material/Finish: ●Body: Stainless steel (SUS303) ●Knob: Polyamide ●Shaft: Carbon steel (S45C) electroless nickel plating
