IMAO Thumb Turn Clamper QCTHH0834-20 1 pc

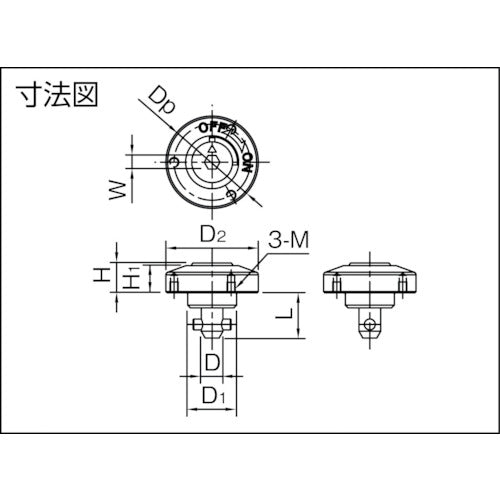

Catalog number: QCTHH0834-20 Features: ●ON and OFF are clear. ●Used in combination with the separately sold cam case. ●Hexagonal socket specifications. Applications: ●Camera unit replacement. Specifications: ●Clamping force (N): 90 ●Compatible plate thickness (mm): 12-20 ●Dimensions (mm) D: 8 ●Dimensions (mm) D1: 18 ●Dimensions (mm) D2: 34 ●Dimensions (mm) Dp: 28 ●Dimensions (mm) H: 11 ●Dimensions (mm) H1: 10.0 ●Dimensions (mm) L: 23.0 ●Dimensions (mm) M: M3 x 0.5 depth 4 ●Dimensions (mm) W: 5 ●IMAO Thumb Turn Clamp Material/Finish: ●Body: Stainless steel (SUS303)
