IMAO Thumb Turn Clamper QCTHL0525-10S 1 pc

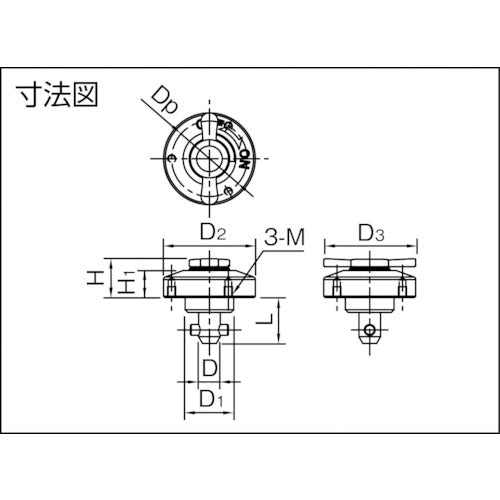

Catalog number: QCTHL0525-10S Features: ●ON and OFF are clearly indicated. ●Low head knob specifications. ●Used in combination with the separately sold cam case. Applications: ●Camera unit replacement. Specifications: ●Clamping force (N): 60 ●Compatible plate thickness (mm): 6-10 ●Dimensions (mm) D: 5 ●Dimensions (mm) D1: 14 ●Dimensions (mm) D2: 25 ●Dimensions (mm) D3: 25 ●Dimensions (mm) Dp: 21 ●Dimensions (mm) H: 11.5 ●Dimensions (mm) H1: 6.5 ●Dimensions (mm) L: 15.5 ●Dimensions (mm) M: M2 x 0.4 depth 3 ●IMAO Thumb Turn Clamp Material/Finish: ●Body: Stainless steel (SUS303) ●Knob: SCS13 (equivalent to SUS304)
