IMAO Hole Clamper QCHC0612N-6-SUS 1 piece

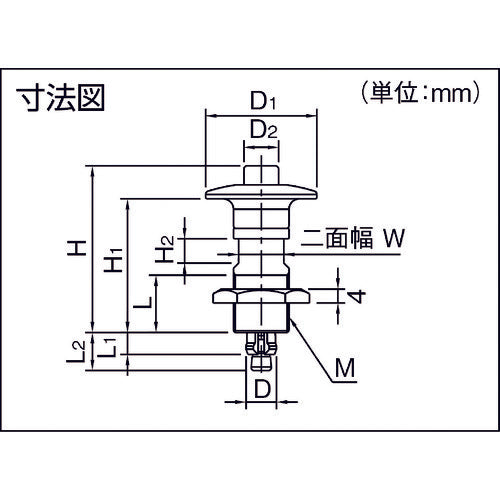

Catalog number: QCHC0612N-6-SUS Features: ●Can be used with simple processing, just by drilling holes in the base. Applications: ●Holder replacement. Specifications: ●Clamping force (N): 3 ●Compatible plate thickness (mm): 3-8 ●Compatible base thickness (mm): 6 ●Dimensions (mm) D: 6.5 ●Dimensions (mm) D1: 23 ●Dimensions (mm) D2: 6.5 ●Dimensions (mm) H: 37 ●Dimensions (mm) H1: 29.0 ●Dimensions (mm) H2: 5.5 ●Dimensions (mm) L: 12.5 ●Dimensions (mm) L1: 9.5 ●Dimensions (mm) L2: 13.5 ●Dimensions (mm) M: M12×1 ●Dimensions (mm) W: 10 ●Dimensions (mm) W1: 19 ●Hole clamper Material/Finish: ●Body, nut: Stainless steel (SUS303)
