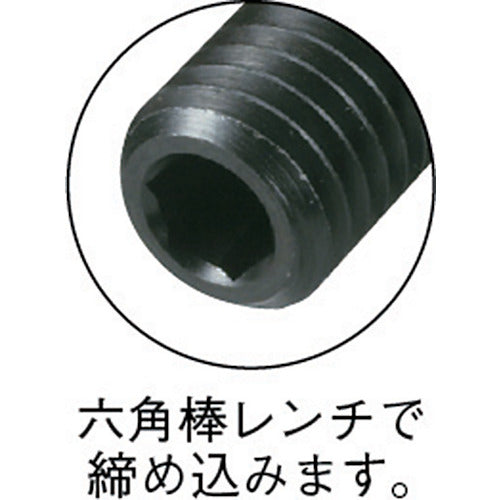

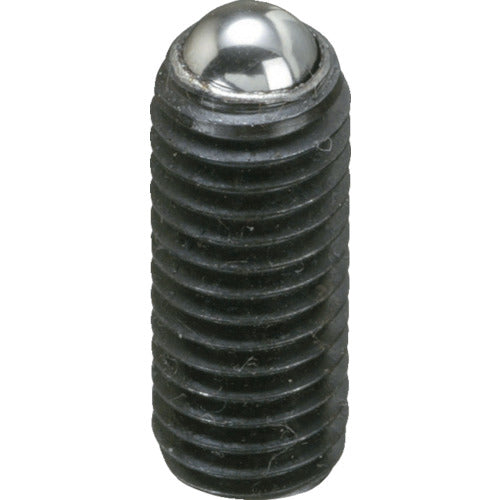

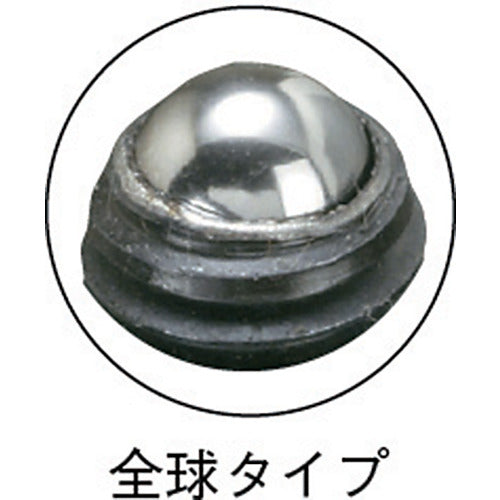

Catalog number: BSR12X20 Features: ● The ball tip holds the workpiece at a point. Applications: ● Point support. Specifications: ● Thread dimensions: M12 x 1.75 ● Overall length (mm): 22.0 ● Ball diameter (mm): 8.7 ● Hexagonal two-sided width (mm): 6.0 ● Ball protrusion (mm): 2.9 ● Pole diameter (mm): 8.7 ● Full-ball type Material/Finish: ● Body: Steel ● Ball: Steel Note: ● There is no built-in spring, and the ball will not dent.
