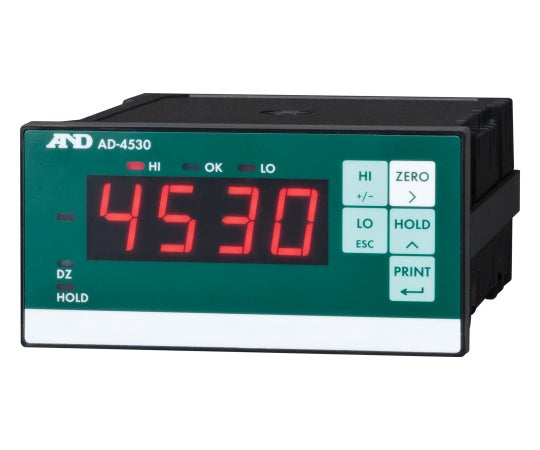

Indicator AD-4530JA 1 piece

This indicator converts the voltage signal from the sensor and displays it digitally. Suitable for measuring load, pressure, torque, tension, etc. Digital span calibration is possible regardless of the actual load. Upper and lower limit function (comparator). Hold function. Latch function. Anti-chattering function. Power-on zero function. Functions: comparator, hold, latch, anti-chattering Input sensitivity: 0.4μV/D or more Zero adjustment range: -35mV to 35mV Load cell applied voltage: DC5V Maximum number of load cells: Up to 3 x 350Ω sensors, up to 1 x 120Ω sensor can be connected Temperature coefficient: Zero point ±0.2μV/℃Typ., Span ±30ppm/℃Typ. Nonlinearity: 0.01%ofF.S.±1d Maximum measurement voltage: 35mV Sampling speed: 10 times/sec Power supply: AC100~240V 50/60Hz approximately 10W Size: 96 x 146.6 x 48mm (including protrusions) *Power cable is not included. *Only one option can be installed
