Eastern Resin Bearing E-Type E-0518 1 pc

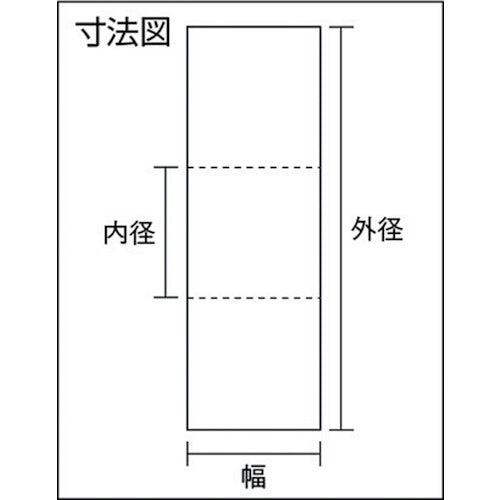

Catalogue number: E-0518 Features: ● Resin molded bearing with built-in precision bearing. ● Compared to steel outer periphery, it has a noise and vibration absorbing effect. Applications: ● Guide rollers, door rollers, holding and anti-vibration rollers. Specifications: ● Bearing: 695ZZ ● Inner diameter (mm): 5 ● Outer diameter (mm): 18 ● Width (mm): 5 ● Estimated load (N): 100 ● Bearing precision grade: JIS B 1514 Grade 0 ● Operating temperature range: -20 to 80°C ● Resin molded bearing (product with built-in JIS bearing) Material/Finish: ● Bearing: Steel ● Outer periphery: Polyacetal resin (POM) ● Bolt: Steel Note: ● This is an estimated load value and is not a guaranteed value.
