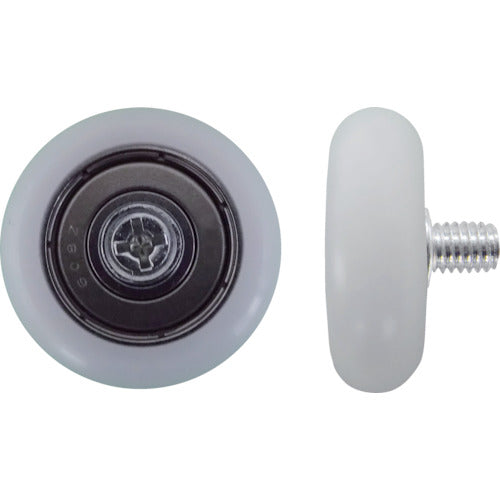

Eastern Plastic Bearing EO-B Type EO-0622-B 1 pc

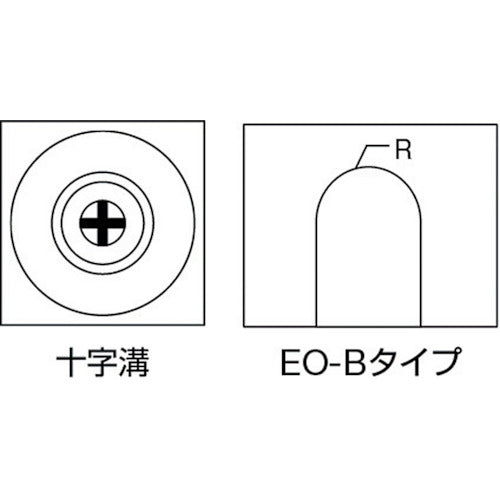

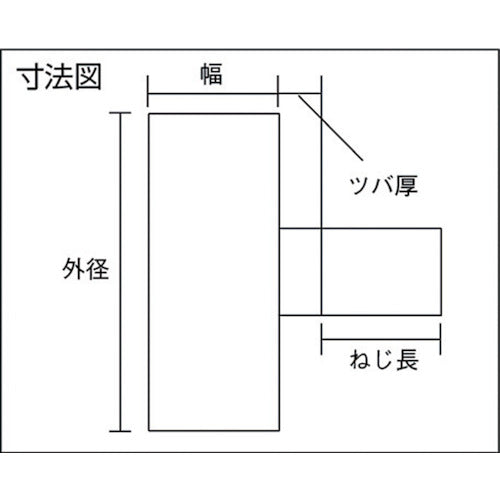

Catalog number: EO-0622-B Features: ● Resin molded bearing with built-in precision bearing. ● Compared to iron outer periphery, it has a noise and vibration absorbing effect. Applications: ● Guide rollers, door rollers, rollers for holding and preventing vibration. Specifications: ● Bearing: 696ZZ ● Outer diameter (mm): 22 ● Width (mm): 7 ● Estimated load (N): 150 ● Dimensions (mm) R: 5 ● Roller screw dimensions: M6 x 1.00 ● Screw length (mm): 8 ● Flange thickness (mm): 1.0 ● Hexagonal hole (mm): 2.5 ● Bearing precision grade: JIS B 1514 Grade 0 ● Operating temperature range: -20 to 80°C ● Fastening part: Cross groove bolt type ● Resin molded bearing (JIS bearing built-in product) Material/Finish: ● Bearing: Steel ● Outer periphery: Polyacetal resin (POM) ● Bolt part: Steel (Surface treatment: Trivalent chromate plating) Note: ● This is an estimated load value and is not a guaranteed value.
