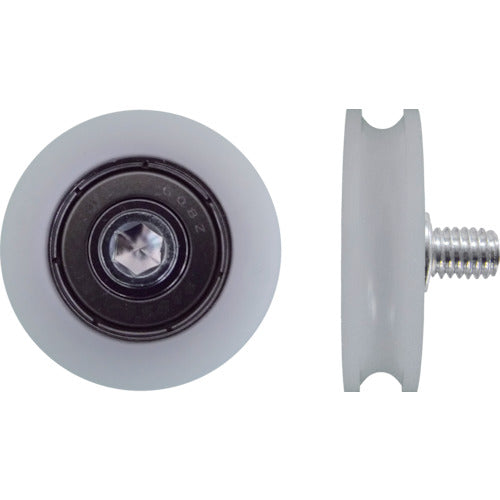

Eastern Plastic Bearing EU-6B Type EU-0635-6B 1 pc

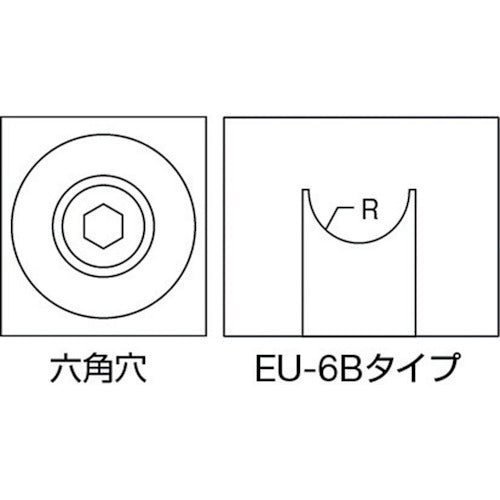

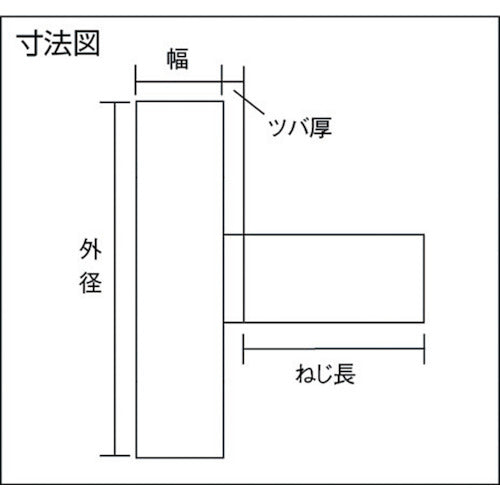

Catalog number: EU-0635-6B Features: ● Resin molded bearing with built-in precision bearing. ● Compared to iron outer periphery, it has a noise and vibration absorbing effect. Applications: ● Guide rollers, doors (hanging doors), pulleys, tension for wire use. Specifications: ● Bearing: 608ZZ ● Outer diameter (mm): 35 ● Width (mm): 9 ● Estimated load (N): 200 ● Dimensions (mm) R: 2.5 ● Roller screw dimensions: M6 x 1.00 ● Screw length (mm): 8 ● Flange thickness (mm): 0.5 ● Hexagonal hole (mm): 5 ● Bearing precision grade: JIS B 1514 Class 0 ● Operating temperature range: -20 to 80°C ● Fastening part: Hexagonal groove bolt type ● Resin molded bearing (JIS bearing built-in product) Material/Finish: ● Bearing: Steel ● Outer circumference: Polyacetal resin (POM) ● Bolt part: Steel (Surface treatment: trivalent chromate plating) Note: ● This is an estimated load value and is not a guaranteed value.
