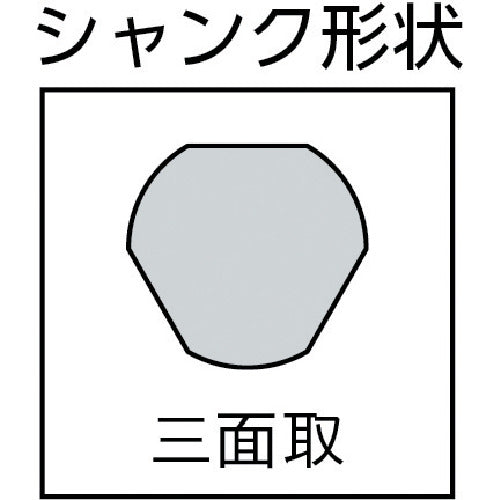

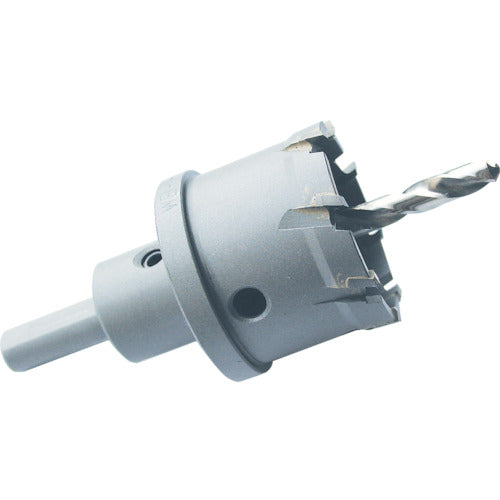

Catalog number: WBH-39 Features: ●The combination of the inner and outer blades and the cutting edge configuration with four cutting parts reduce resistance and increase the drilling speed. ●Smooth cutting edge and long life. ●The adoption of a chip discharge groove allows you to drill holes in stainless steel and wood with a plate thickness of 25 mm. (Depends on the conditions of use) Applications: ●Cutting materials: Stainless steel plate (25 mm or less), steel plate, copper plate, FRP, synthetic resin. Specifications: ●Blade diameter (mm): 39 ●Chest depth (mm): 25 ●Shank shape: Three-sided (straight) ●Shank diameter (mm): 10 ●Blade thickness (mm): 3 ●Total length (mm): 107 ●Effective cutting capacity (mm) Iron plate: 25 ●Effective cutting capacity (mm): 25
