ウォーターミルズ社

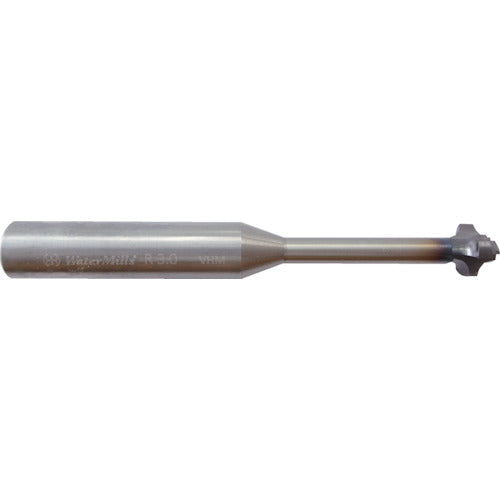

Water Mills Back Countersink R Chamfer Mills R1.0 6.6D x 100 TiAlCN WMRC08066L35R10 1 piece
Water Mills Back Countersink R Chamfer Mills R1.0 6.6D x 100 TiAlCN WMRC08066L35R10 1 piece
Regular price
¥23,860
Regular price
Sale price
¥23,860
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

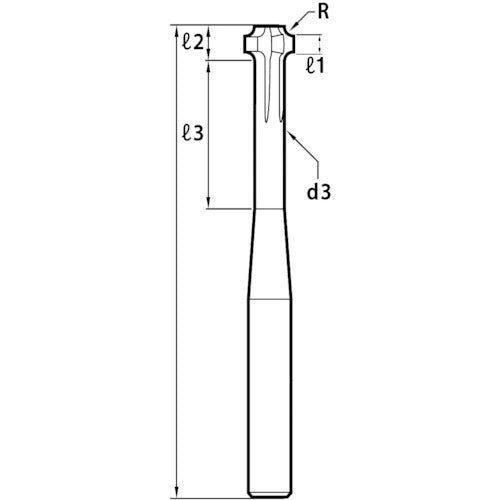

Catalog number: WMRC08066L35R10 Features: ●Can chamfer the R on both sides of drill holes and machined surfaces. Applications: ●For chamfering the R on both sides of drill holes and machined surfaces. Specifications: ●Number of teeth (pieces): 3 ●Total length (mm): 100 ●Shank diameter (mm): 8 ●L1 (mm): 2.23 ●L2 (mm): 4.3 ●L3 (mm): 35 ●d3 (mm): 4.35 ●Number of teeth: 3 ●R±0.02: 1.0 ●Surface treatment: TiAICN coating ●Effective blade diameter (mm): 6.6 ●Surface treatment: TiAICN coating Material/Finish: ●Ultra-fine grain carbide + TiAlCN coating
