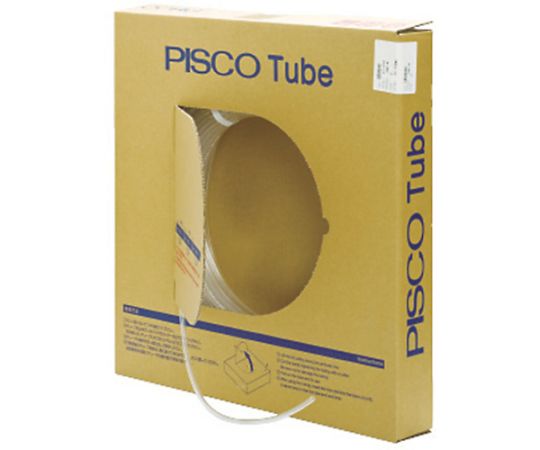

Urethane tube, transparent, 6 x 4.0, 20 m, UB0640-20-C, 1 roll

Great flexibility. Suitable for general pneumatic piping that requires a small bending radius. Convenient cut marks are provided at 500mm intervals for cutting the tube. Color: Clear Outer diameter (mm): 6 Inner diameter (mm): 4 Minimum bending radius (mm): 15 Total length (mm): 20 Fluids used: Air, water (conditions apply) Total length (m): 20 Wall thickness (mm): 1 Tube outer diameter (φD) (mm): φ6 Tube inner diameter (φD) (mm): φ4 Minimum mounting radius (mm): 23 Maximum operating pressure: 1.0MPa (at 20℃ 65%RH) Vacuum pressure used: -100kPa Operating temperature range: -15 to 60°C (water, no freezing), -20 to 70°C (air, no freezing) Made in an ISO9001 certified factory Made in an ISO14001 certified factory Material/Finish: Thermoplastic Polyurethane (TPU) Caution: Do not apply loads such as tension, twisting, or extreme bending to the tube. This may cause the tube to collapse, burst, or come loose. Do not scratch or tangle the tube as this may cause the tube to burst. The tube's bursting pressure decreases as the temperature rises, so be sure to understand the operating pressure and ensure that you have a sufficient safety margin. Use the tube with a minimum bending radius or greater. When installing the tubes, leave sufficient slack to allow for changes in length, etc. Country of Origin: Japan Code number: 378-3146
