SMC

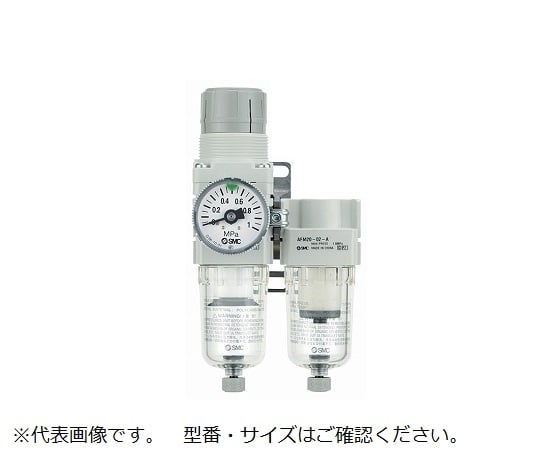

Air filter Filter regulator + mist separator Rc1/4 AC30D-02G-B 1 unit
Air filter Filter regulator + mist separator Rc1/4 AC30D-02G-B 1 unit
Regular price
¥23,100
Regular price
Sale price
¥23,100
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
It removes dirt and oil from the compressed air and controls the pressure.
By installing a membrane air dryer using a spacer with an L-shaped bracket, you can obtain even cleaner and drier air. Configuration: Filter regulator + mist separator
Connection size: Rc1/4
Fluid used: Air
Filtration: 0.3μm (95% captured particle size)
Secondary oil mist concentration: MAX 1.0 mg/m3 (approx. 0.8 ppm) *Values at 20°C, atmospheric pressure, and relative humidity of 65%.
Set pressure range: 0.05 to 0.85 MPa
Rated flow rate: 330L/min
Case guard: Yes
*Other connection diameter sizes are available, so please contact us.
