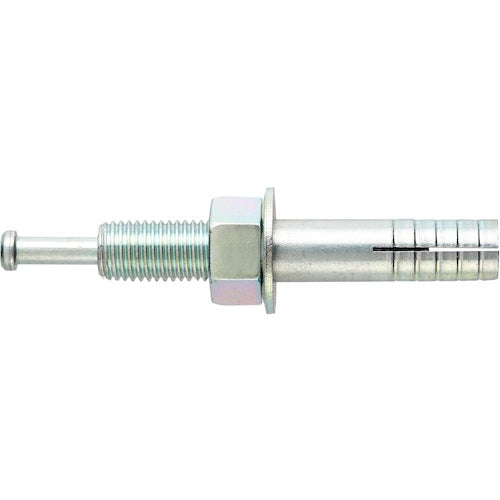

AY Fastener Tight Anchor C-1615 Trivalent C-1615 15 pieces

Catalogue number: C-1615 Features: ● Simple installation by simply driving in the core rod, so installation is clear at a glance ● Can be installed from above the object to be attached ● Body diameter and screw nominal diameter are the same Applications: ● Machine installation, fixing electrical conduits, installing signs and advertising towers ● Heating and cooling/air conditioning installation ● Ladders installation ● Lighting installation ● Fences and handrail installation Specifications: ● Screw nominal: M16 ● Total length (mm): 150 ● Screw length (mm): 50 ● Maximum object thickness (mm): 70 ● Pilot hole diameter (mm): 17.0 ● Maximum tensile load (kN): 29.6 ● Embedded depth (mm): 60 Material/Finish: ● Steel ● Surface treatment: Trivalent chromate
